- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer5(3)
291
31

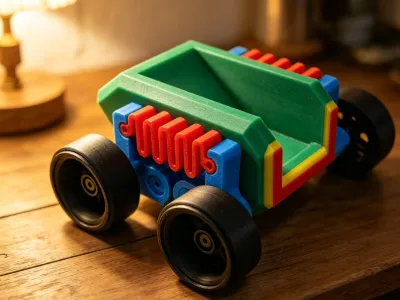

The overall model is designed to showcase the shock-absorbing structure; later design iterations can reference similar structural concepts.
The wheels should be secured using M3×10 screws. For the spring components, we recommend printing them with PETG filament. If greater elasticity is desired, you can increase the spring’s dimensions or switch to a stiffer filament material.
At the joint between the suspension and the main body, a wood-grain screw with a 10 mm head can be screwed in as a stopper.
