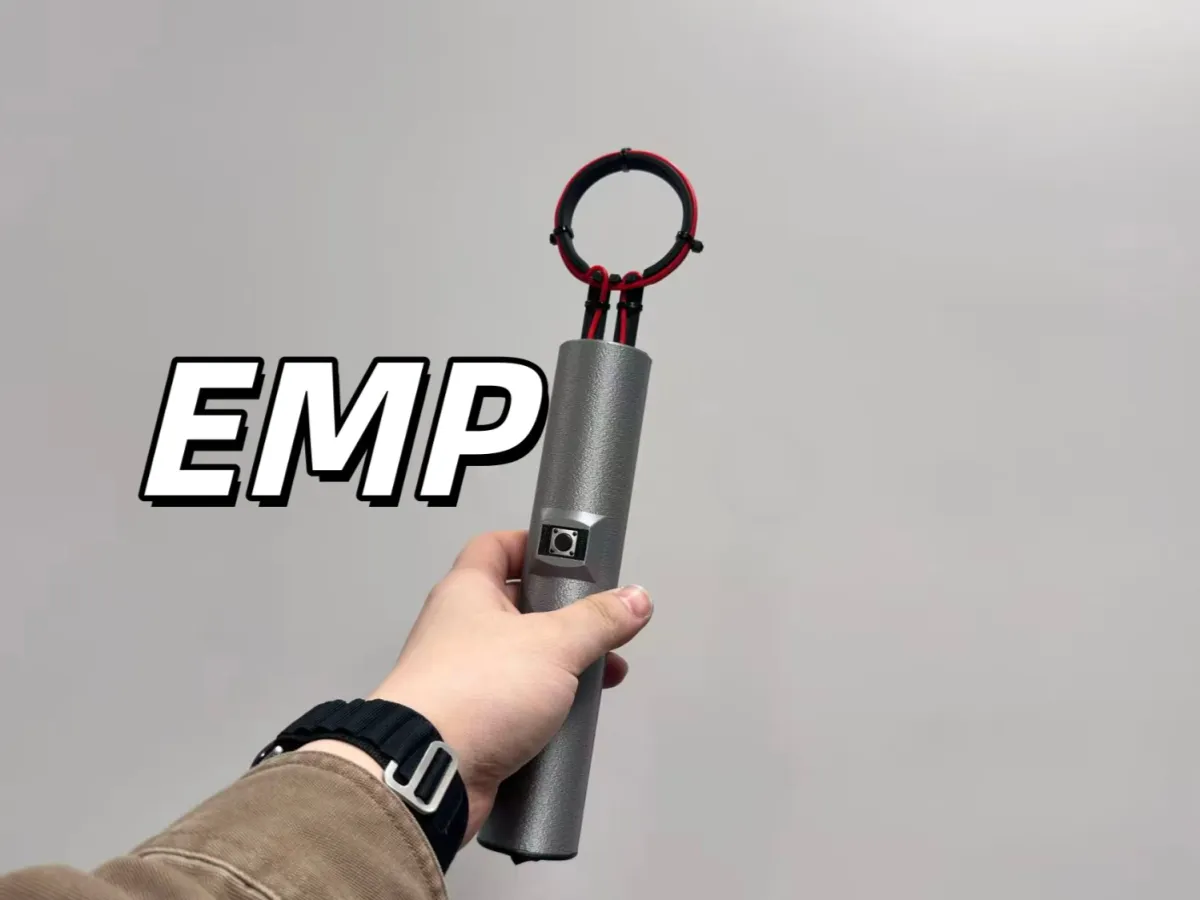

EMP pulse generator housing

YEHO

Print Profile(1)

0.2 mm layer height, 2‑wall walls, 15% infill density

1-disc

PETG

Designer

Released 2026-05-02

Details

Files(2)

Makes & Comments (0)

The following components are required: (specialized parts are provided with purchase links)

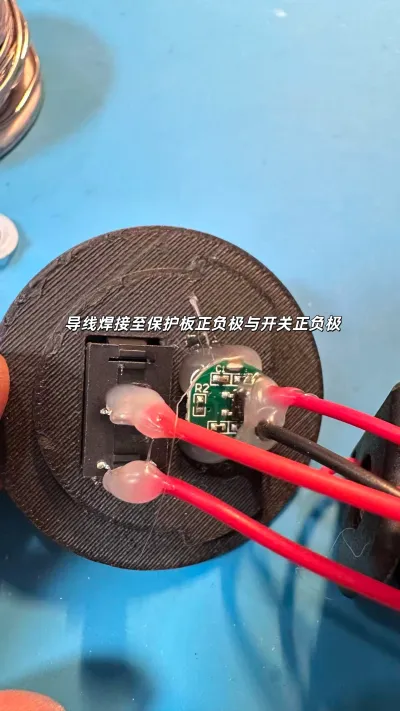

Vertical protective plate: https://mobile.yangkeduo.com/goods1.html?ps=wSECU9n6BG

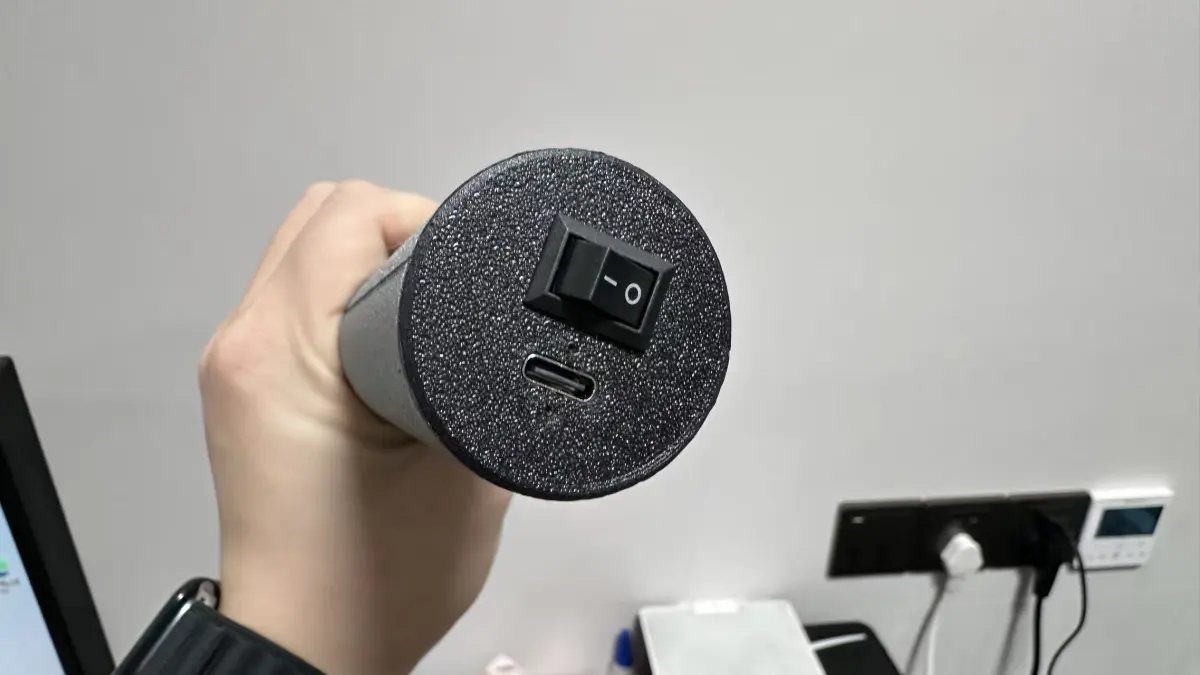

10.5mm × 15mm boat-shaped switch
12mm × 12mm × 5mm surface-mount tactile switch
18650 battery
18650 battery holder

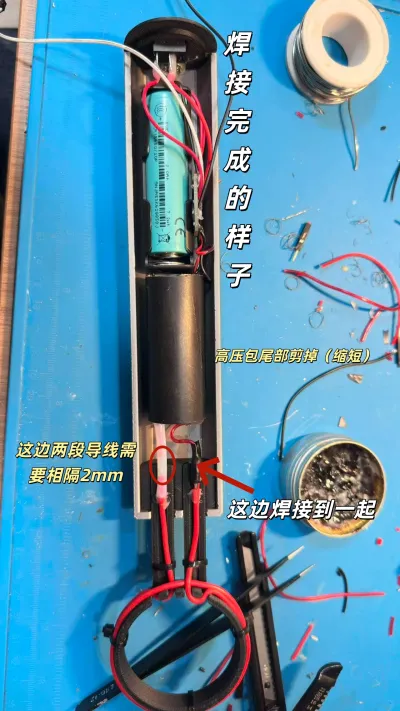

1000kV high-voltage module
Electrical wires
Teflon tubing

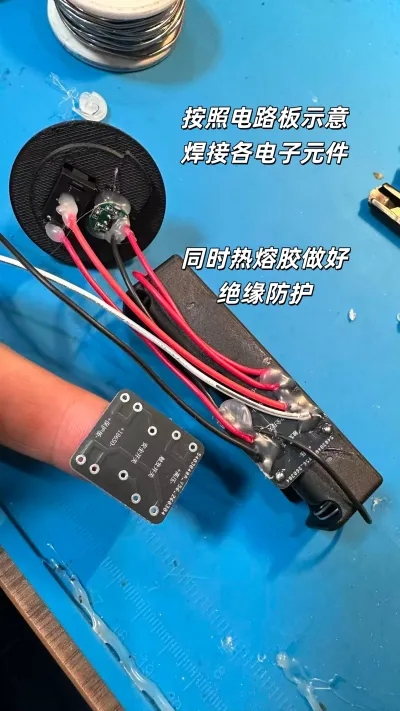

Circuit board link (PCB design files have been uploaded; customers can fabricate their own boards)

Bill of materials

Name
Quantity
Notes
1
10.5mm*15mm船型开关
1
2
12mm*12mm*5mm贴片轻触开关
1
3
立式保护板
1
4
18650电池及电池盒
1
5
1000kv高压包
1
6
电线及特氟龙管等辅材
1
7
电路板
1
