Product Introduction

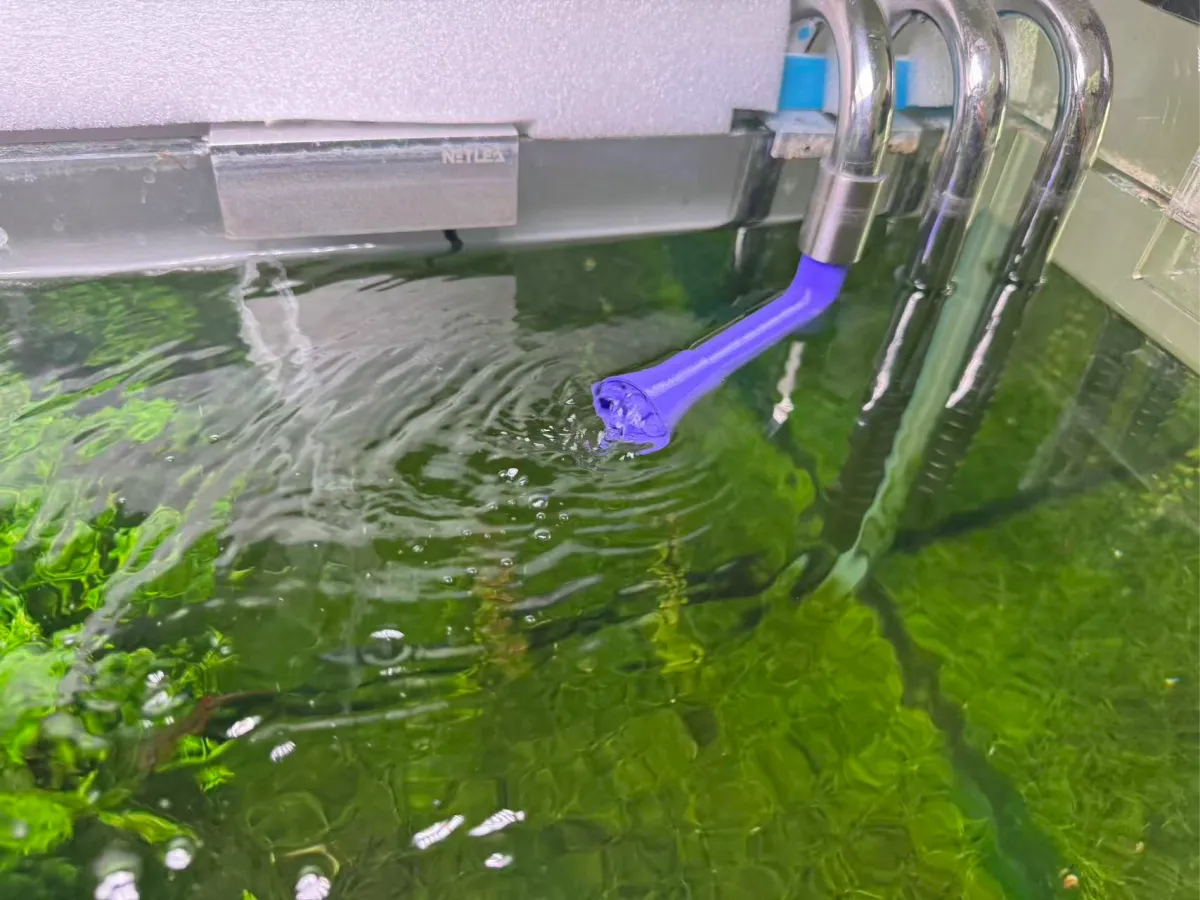

This is a dynamic oxygenating water outlet specifically designed for aquarium filtration systems. Its core feature is the turbine-style rotating head at the end, which is driven automatically by the outgoing water flow to break up the concentrated stream and entrain air, thereby enhancing water circulation while significantly increasing dissolved oxygen levels. It can directly replace the original outlet and is compatible with a variety of common hose sizes, making it a practical upgrade accessory for improving oxygenation efficiency and enhancing the aesthetic appeal of your aquarium.

Design Highlights

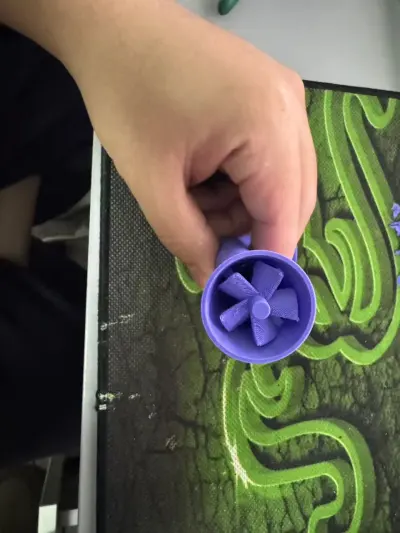

1. Turbine Blade–Driven Rotation: The terminal outlet incorporates multiple radially arranged blades that rotate continuously under water pressure, creating a dynamic, dispersed water flow that delivers superior oxygenation compared with static outlets.

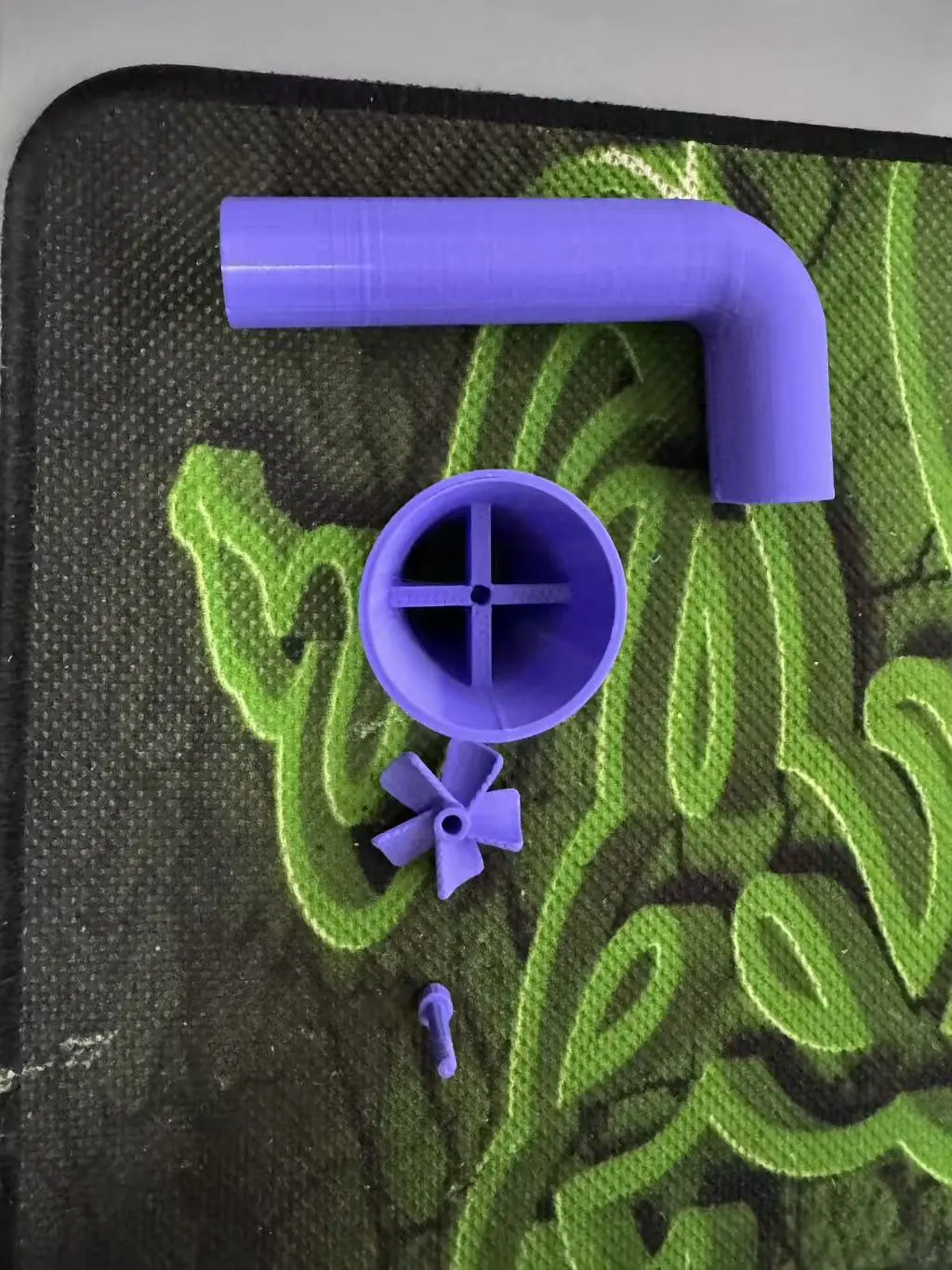

2. Modular Quick-Release Design: The entire system consists of an L-shaped connector elbow, a turbine-driven rotating head, and an internal flow-directing core, among other components. This modular design allows for thorough disassembly and cleaning, preventing scale or algae buildup from obstructing rotation and ensuring easy maintenance.

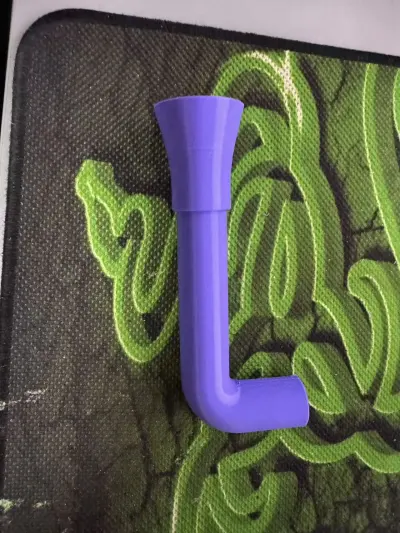

3. Adjustable-Angle Connector Elbow: The L-shaped connector enables users to fine-tune the final water-outlet angle, allowing optimal alignment with different tank depths and aquascaping layouts to direct the flow to the most effective position.
4. Splash-Resistant Structure and Uniform Water Dispersion: The rotating head’s multiple outlet holes evenly distribute the water flow, and combined with the rotational motion, effectively prevent the water from shooting straight to the tank bottom or splashing excessively, resulting in quieter operation.

Technical Specifications

• Compatible Hose Diameter: Typically fits standard hoses with an outer diameter of 16 mm (12/16 hose) or 22 mm (16/22 hose).
• Core Structure: L-shaped adjustable connector elbow plus turbine-driven rotating outlet head.
• Primary Materials: Suitable for 3D printing with PETG or ABS materials (ensuring long-term safety and durability in underwater environments).
• Drive Mechanism: Hydraulically powered—no additional power source required.

Application Scenarios

1. Oxygenation for Small to Medium-Sized Aquariums: Provides an efficient, energy-saving oxygenation solution for tanks without a dedicated air pump, particularly well-suited for densely stocked setups.
2. Planted Tanks and Eco-Aquariums: The gentle, dynamic water flow promotes water circulation while avoiding strong currents that could stress aquatic plants or delicate organisms.
3. Improving Surface Stagnation: The rotating water flow helps break up surface oil films, increases surface agitation, and enhances gas exchange.
4. Enhancing Aesthetic Appeal: The dynamically rotating water adds a lively visual element to the aquarium, capturing attention and elevating the overall viewing experience.
