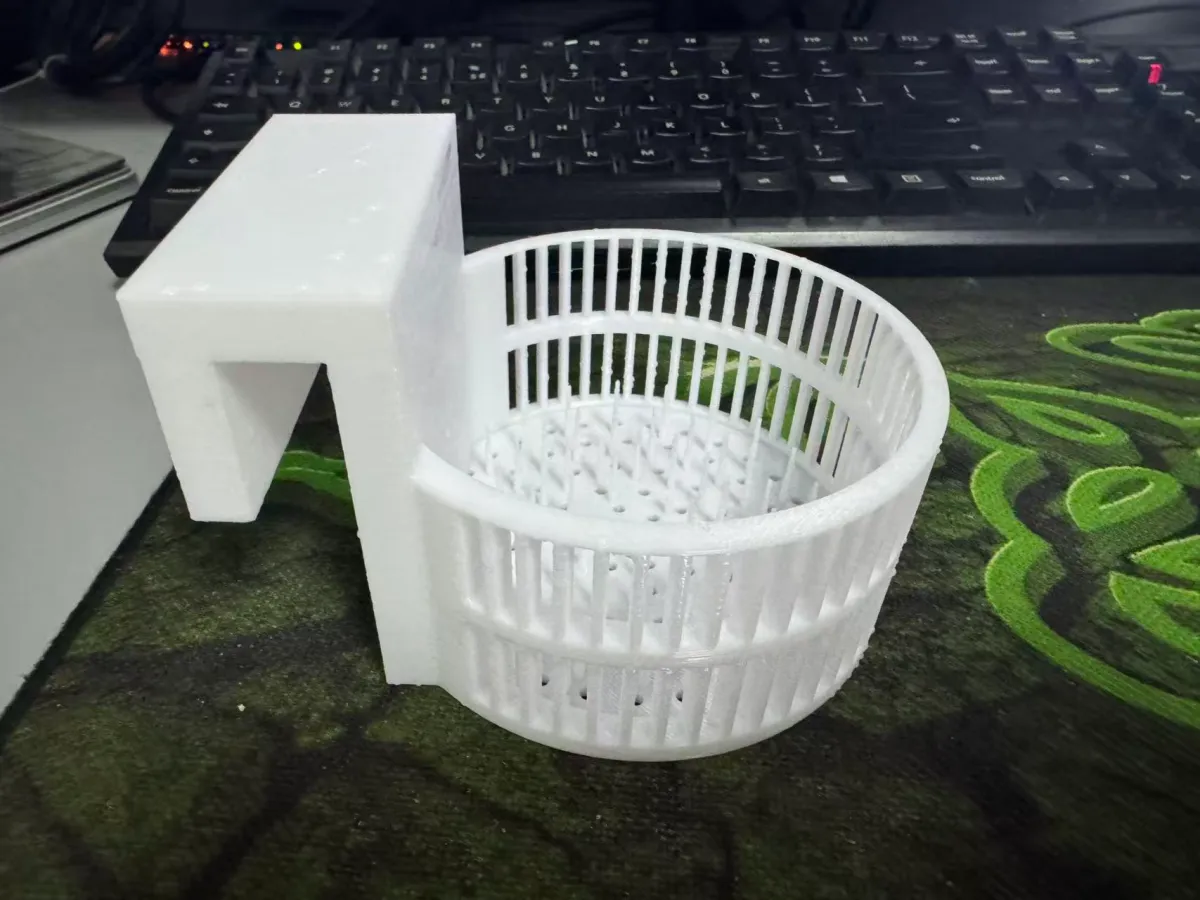

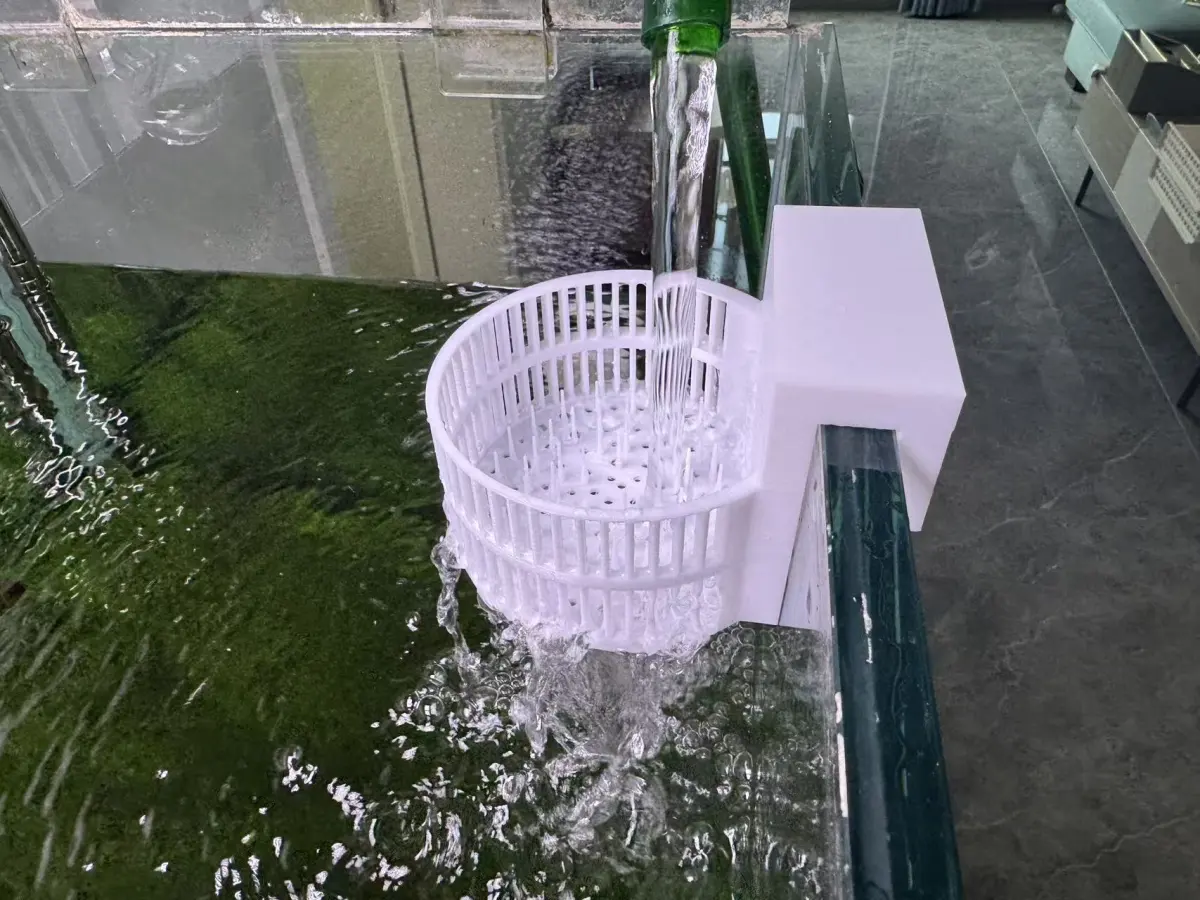

This is a 3D‑printed multi‑functional water‑changing buffer designed specifically for aquariums, featuring a sleek white cylindrical body paired with a side wall structure punctuated by vertical perforations. The dense array of micro‑holes at the base of the bowl effectively diffuses the force of incoming water, while the strategically placed sidewall guide channels transform the injected flow into a gentle, rain‑like cascade—preventing direct erosion of the substrate and minimizing disturbance to fish and shrimp. A sturdy square mounting clip on one side allows the device to be securely suspended against the tank wall, accommodating glass of varying thicknesses. With its clean, minimalist design, the device creates a mesmerizing white water curtain as water flows through it, blending functionality with aesthetic appeal.

Design Highlights

  • Slow‑Flow Rainfall System

    The dual‑layer micro‑perforation design at the bottom, combined with vertical grooves along the side walls, facilitates three stages of water diffusion, significantly reducing the impact force of the incoming stream.

  • Wall‑Adaptive Mounting Clip

    The square clip is compatible with glass thicknesses ranging from 5 to 12 mm, offering secure attachment while remaining easy to install and remove without damaging the aquarium tank.

  • Multi‑Purpose Versatility

    Perfect for use as a water‑changing buffer, a filter screen for a sump bucket, or a compact filtration chamber—this single device serves multiple purposes.

  • Eco‑Friendly, Aquatic‑Safe Materials

    Constructed from aquarium‑grade, non‑toxic materials with a smooth surface that resists algae growth even over extended periods of use.

Technical Specifications

  • Compatible Tank Size: Suitable for aquariums with glass thickness of 15 mm
  • Recommended Materials: Eco‑friendly PETG or aquarist‑grade ABS (water‑resistant and dimensionally stable under prolonged immersion)
  • Structural Features: Approximately 8 cm in diameter and 12 cm tall, featuring 128 buffering micro‑holes
  • Printing Tips: We recommend 100% infill to ensure optimal strength; the vertical ribbing does not require support structures.

Application Scenarios

▸ Use as a water‑flow buffer during aquarium water changes to protect the substrate and delicate aquatic plants

▸ Serve as a rainfall‑diversion accessory for small top‑mounted filtration systems

▸ Function as a pre‑filter device at the inlet of a sump bucket, helping to trap impurities before they enter the main tank

▸ Provide a gentle, low‑impact water‑addition tool for shrimp tanks or hatchery tanks

Originality of the Model

The author declares that this work is their personally original model
