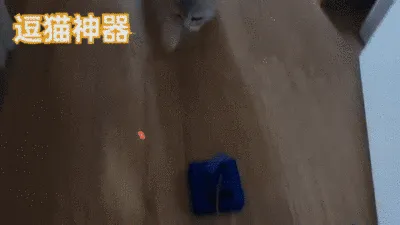

Laser Gimbal Cat Toy
This is an original pet toy I designed for my cat. The base circuitry and development board are based on my previous lifting platform base. If you’d like to replicate it, you can refer to the tutorial for the lifting base.
Control Interface:
Instructions for Use:
You can use this model for the servo arm: SG90 Servo Arm & Servo Disk – Free 3D Printing Model – MakerWorld. For longer servo arms, you’ll need to trim off a portion from both ends before use.
Wiring Diagram:
Bill of materials
- NameQuantityNotes
- 1充放电模块1
- 2esp32c3supermini开发板1
- 318650电池1
- 4激光模块1
- 5杜邦线20
- 69g伺服舵机2
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
No derivative works or remixes of this model allowed
Models(4)
- 逗猫神器上传版本.3mfDesigner
77.42 KB
2026-08-04
短1舵臂.stlDesigner70.79 KB
2026-08-04
逗猫神器.stlDesigner192.56 KB
2026-08-04
长舵臂.stlDesigner141.49 KB
2026-08-04
View all(4)
