Road bike computer mount
A single-piece base with integrated components

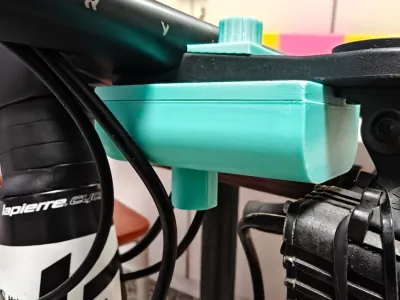

21700 battery compartment
Bicycle modification parts
- 0.2 mm layer height, 2‑wall walls, 30% infill density
1-disc
PETG
Designer
12
3
Hardware Accessories
M5×25 screw: 1 piece
M5 nut: 1 piece
M3×8 self-tapping screws: 4 pieces
DC099 5.5×2.1 connector: 1 piece
Installation Steps: First, trim the solder joint at the end of the DC099 to about 2 mm; once soldered, leave approximately 6–7 cm of wire for the positive and negative leads. Insert the M5 screw through the thin plate and secure it with 401 adhesive. The battery compartment is designed to accommodate 21700 cells with a slight tolerance; pre-solder a nickel tab to redirect the wire toward the battery terminal. After both 21700 cells are installed in the compartment, proceed to solder the wires connecting them to the protection board and the DC plug. Finally, ensure proper insulation and protection of the positive and negative nickel tabs.
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Only noncommercial uses of the work are permitted
Remixes must be shared under the same license
