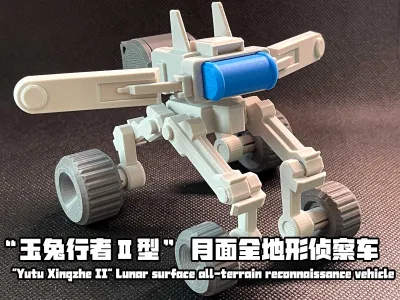

“Yutu II” Lunar All-Terrain Reconnaissance Vehicle | 11 Movable Joints | Smooth, Fluid Movement

Core Design
✅ Bionic Joint System

11 Articulated Joints: Four independent suspension legs, each with four movable segments, plus three body‑turning nodes, replicating the real lunar rover’s dynamic terrain‑adaptability.

270° Omnidirectional Wheels: An innovative hinged wheel hub design effortlessly negotiates lunar rocks, craters, and slopes up to 30°, ensuring smooth, fluid motion.

✅ Detection Radar Suite

Four‑Radar Array: A 360° terrain‑scanning radar mounted on the vehicle body, with deployable side‑mounted radars.

High‑Sensitivity Sensor Head: A front‑facing wide‑angle lens compartment enabling all‑around visual reconnaissance.

Rear Energy Core: A modular fusion battery pack equipped with cat‑ear‑style heat dissipation vents.

✅ Movable Joint Architecture

Transformable Suspension System: A hydraulically adjustable chassis that dynamically varies ground clearance (15–50 mm range).

True‑to‑Scale Proportions: The original vehicle measures 2.4 m high × 4.5 m long → 1:35 print size, 7 × 13 cm, making it an ideal desktop display piece.

Default Printer Settings:To ensure optimal results, joints are printed relatively tightly.

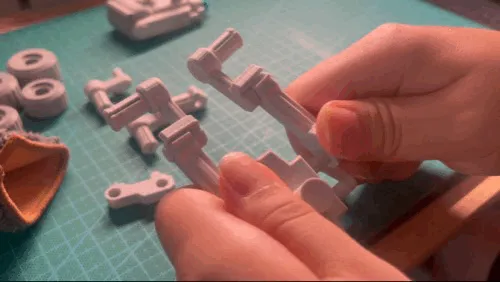

When assembling, gently rotating the parts will make installation easy; be careful not to over‑rotate.

Assembly Instructions Available in the “Attachment”
