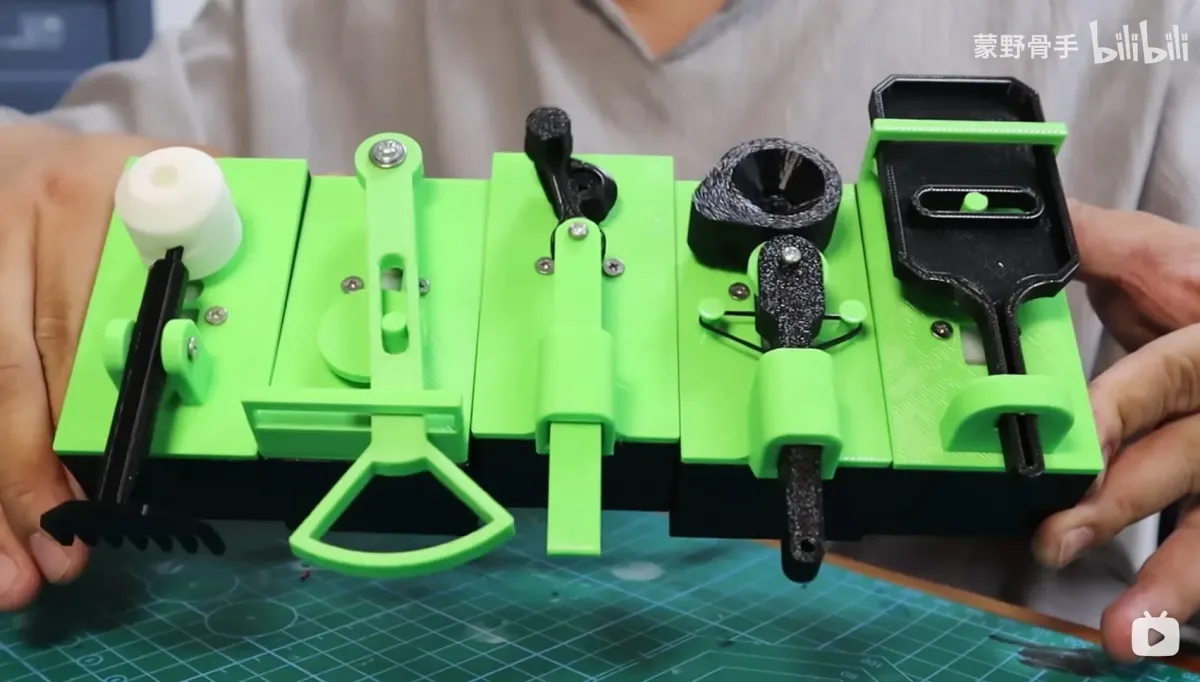

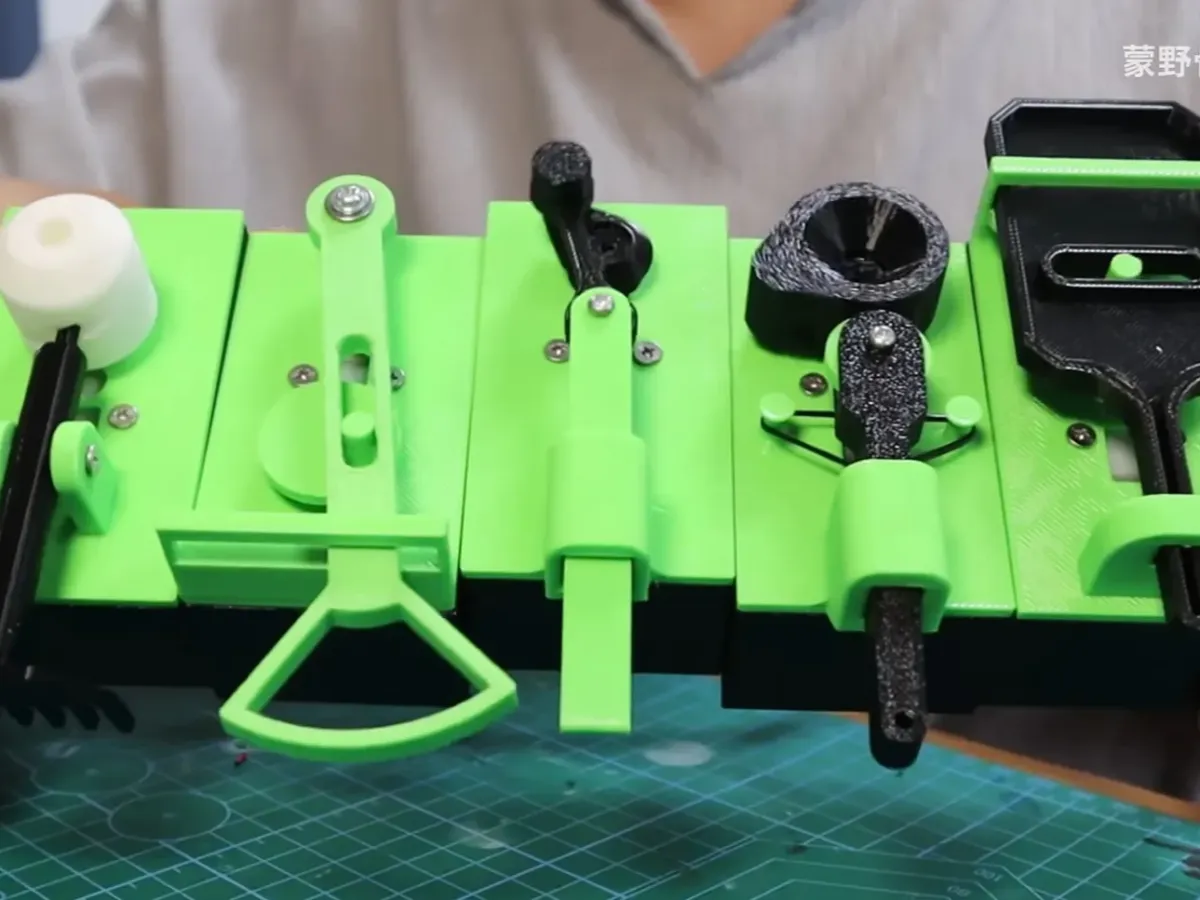

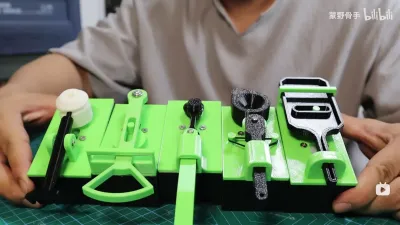

Five types of reciprocating mechanisms driven by circular motion
Print Profile(1)
  • 0.2 mm layer height, 2-wall structure, 8% infill density

    5-disc

    PETG

    Designer

0

2

8

2

Released 2026-04-23
Details
Files(1)
Makes & Comments (0)

Please support original designers—design is no easy feat.



Hardware components: 10 M3×10 screws, 10 M3×30 screws, 1 rubber band, and 5 motors with a shaft diameter of 7 mm.



For detailed assembly instructions, search for the “Meng Ye Gu Shou” video on Bilibili; it provides a step-by-step guide.



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    tt马达
    5
    一定要卖轴径7mm的
  • 2
    M3*10的螺丝
    20
  • 3
    皮筋儿
    1

Originality of the Model

The author declares that this work is their personally original model
