Product Overview

This is an L-shaped sand-blocking/ filtration partition specifically designed for aquariums with bottom-filter systems. Its primary function is to be placed at the bottom of the tank, separating the substrate (such as aquascaping soil, ceramic media, or decorative sand) from the pump’s intake port to create a smooth, unobstructed water flow path. It ensures that water flows evenly across the bottom, carrying fish waste and debris into the filtration system while effectively preventing substrate particles from being sucked into the pump and causing damage. As such, it is an essential filtration component for establishing a healthy, stable aquatic ecosystem.

3. Design Highlights

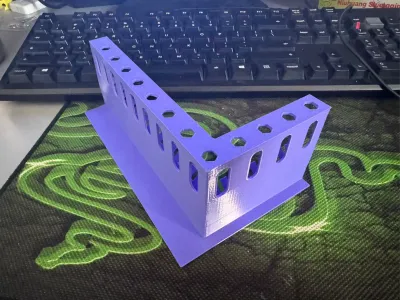

• L-Shaped Corner Design: Perfectly fits into the corner of the aquarium, maximizing bottom-space utilization while facilitating easy pipe connections and concealment.
• High-Efficiency Water-Permeable Structure: The panel is densely and uniformly perforated with circular and hexagonal holes, which block sand particles while maintaining unimpeded water flow and eliminating stagnant zones.
• Sturdy Supporting Structure: The one-piece L-shape combined with reinforced bottom ribs ensures the component can withstand the weight of the substrate and any decorative elements above, preventing collapse.
• Modular Compatibility: Standardized height and length dimensions allow multiple units to be joined together, making it adaptable to aquariums of various sizes.

4. Technical Specifications

• Model Includes: A complete L-shaped sand-blocking component.
• Construction: One-piece molding, robust and durable.
• Key Dimensions (Example; please verify against the model): Single-side length approximately 200–300 mm, height approximately 30–50 mm (these are typical ranges; actual measurements in the model file shall prevail).
• Core Features: High strength, water-resistant, and safe for aquatic organisms (depending on the printing material used).
• Supported File Formats: STL, OBJ, FBX.

5. Application Scenarios

• Building Bottom-Filter Systems for Aquariums: The core application—placed at the bottom of the tank to create a dedicated bottom-filter compartment.
• Aquascaping Tanks/Eco-Aquariums: Prevents fine particles from aquascaping soil or other substrates from entering the filtration system and damaging the pump.
• Fry/Shrimp Tanks: Protects juvenile fish and shrimp from being drawn into the filter intake.
• Amphibian/Reptile Tank Water-Level Management: Can serve as a localized elevation and isolation layer.
