CC2 Magnetic Filter Bracket
Print Profile(2)
  • 0.2 mm layer height, 3‑layer walls, 15% infill density

    1-disc

    PETG

    Designer
  • 0.2mm layer, 2 walls, 10% infill

    1-disc

    PETG

    Designer

    5(2)

13

44

463

61

Released 2026-04-11
Details
Files(5)
Makes & Comments (0)

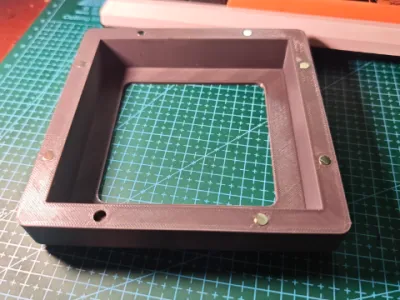

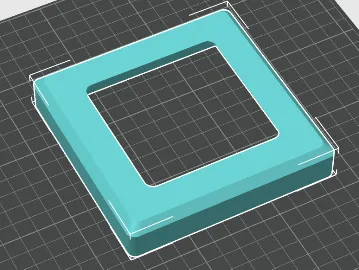

0.2 mm layer height, 2-wall infill, no supports required; simply snap the magnet into place.

Compatible with HEPA activated-carbon filters, dimensions: 105 × 105 × 20 mm; users can DIY their own filter cartridges.

Simply slip it on and use—entirely passive operation; external exhaust can also be customized by the user.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    圆形磁铁，规格：直径5*厚度2.5mm
    8
  • 2
    HEPA活性炭滤网，规格：105*105*20mm
    1
    可自行DIY

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Models(4)

  • model file image
    磁吸活性炭被动过滤架(倒角).STEPDesigner

    133.89 KB

    2026-04-10

  • model file image
    磁吸活性炭被动过滤架(圆角).STEPDesigner

    112.18 KB

    2026-04-10

  • model file image
    磁吸过滤架.3mfDesigner

    72.93 KB

    2026-04-12

  • model file image
    CC2 Magnetic Filter PETG.3mf

    73.07 KB

    2026-04-20

  • View all(4)

Attachments(1)

  • gcode

    ECC2_0.4_磁吸活性炭被动过滤架(圆角)_Elegoo PETG _0.2_1h26m.gcode

    2.31 MB

    2026-04-10
