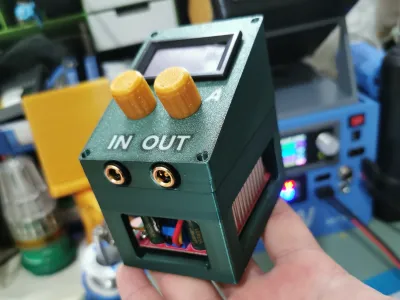

Low-cost 400W adjustable power supply based on the TL494 boost module.
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PLA

    Designer

0

0

6

1

Released 2026-04-06
Details
Files(2)
Makes & Comments (0)

             Note: DIY projects require a certain level of hands-on skill; please observe electrical safety precautions





          Build a low-cost, 300W analog adjustable power supply using a 10-yuan TL494 boost converter module with constant-voltage and constant-current regulation

          Total cost: approximately 20 yuan

          TL494 module: 10 yuan

          Digital tube voltmeter/ammeter module: 4 yuan

          Gold-plated all-copper DC power socket: 0.5 yuan

          XT60 female connector: 4 yuan—optional for higher current applications

         Potentiometer: 2 yuan

          5010 fan: 1–2 yuan



          The specific components required are listed in the compressed file; please check it yourself. If you cannot open the file, change its extension to .7z.

Bill of materials

  • Name
    Quantity
    Notes
  • 1
    TL494升压模块
    1
  • 2
    数码管电压电流双显表头
    1
  • 3
    XT60 (可选)
    2
  • 4
    镀金全铜DC母座
    2
  • 5
    5010风扇
    1
  • 6
    船型开关9*3
    1
  • 7
    电位器10k 5k
    2
    各一个
