18650 internal resistance current test fixture
Print Profile(1)
  • 0.2 mm layer height, 2‑wall walls, 15% infill density

    1-disc

    PETG

    Designer

0

0

7

0

Released 2026-04-01
Details
Files(1)
Makes & Comments (0)

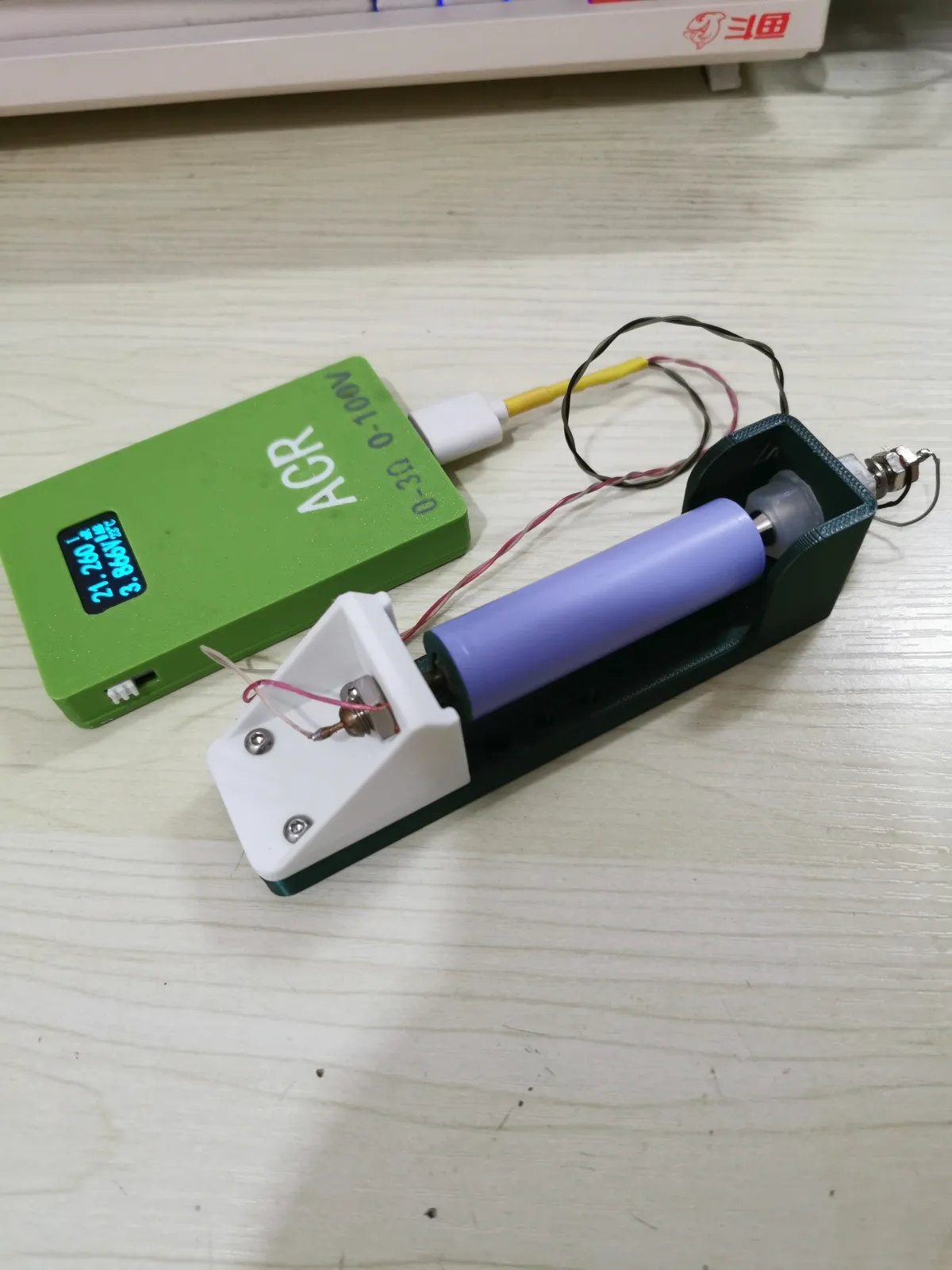

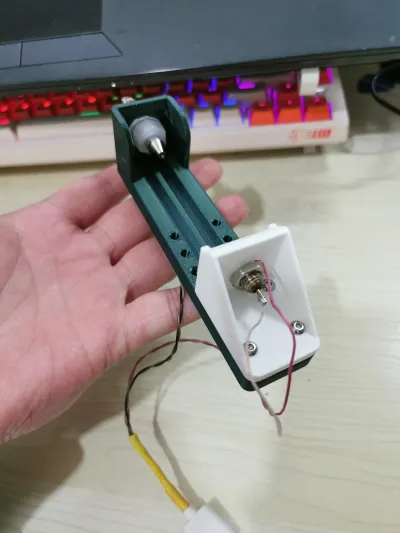

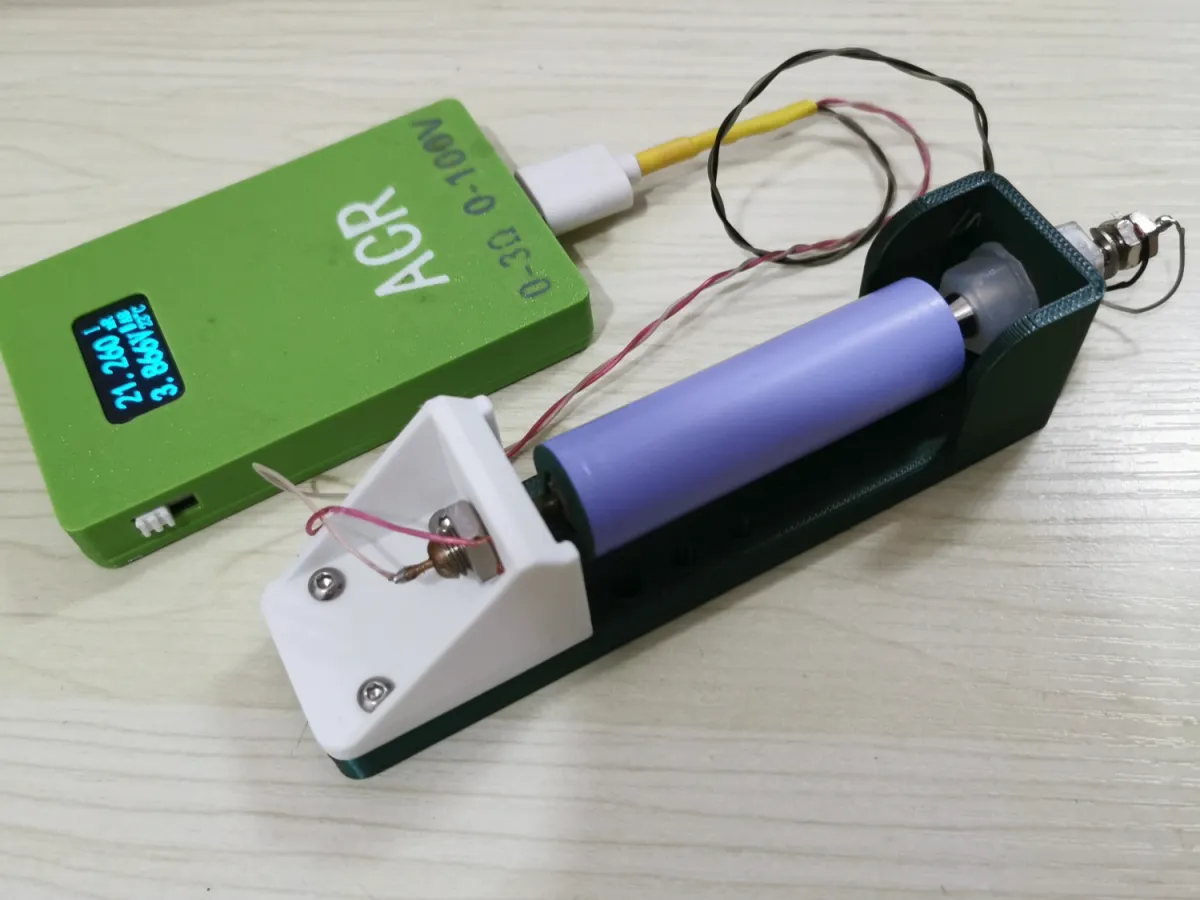

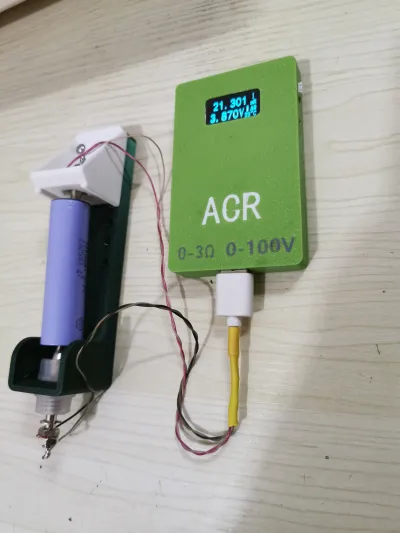

            Battery test sockets for 18650, 21700, 14500, and other cell types, designed using standard 10A probes



        Uses conventional 10A probes, with one positive and one negative pair

        Multi-position adjustable, with a maximum travel of 11 cm

        Features embedded hot-melt nuts to enhance durability



Bill of materials

  • Name
    Quantity
    Notes
  • 1
    10A探针一对
    1
  • 2
    M3*4.2*3热熔螺母
    14
  • 3
    M3螺丝
    4

Originality of the Model

The author declares that this work is their personally original model

This model is licensed under the following terms:

Credit must be given to the creator

Only noncommercial uses of the work are permitted

Remixes must be shared under the same license
