This series of models are based on the geometric five-angle edge shape and are connected by snap-in hinge structure. They can be disassembled and assembled at will, and are as soft as cloth.
This release version is the first group of regular pentagonal units

You can click here to view:

regular triangle group 1

equilateral triangle group 2

More version combinations will be released in the future.

Since this series of models need to be assembled and combined, a certain degree of part fit is required, so it is necessary
to do a good job of flow calibration before printing!
to do a good flow calibration!
to do a good flow calibration!
otherwise, it may cause but not limited to: the 1. cannot be assembled; the 2. assembly is too loose.

Due to the small part of the connecting rod, which is almost close to the minimum limit of FDM printer, and the strength of FDM printed parts, please select consumables with certain strength and layer adhesion. After many printing tests, the minimum required consumables are PLA Basic. Most silk products have very weak strength, especially layer adhesion. The connecting rod is easily broken during disassembly and assembly and becomes disposable.

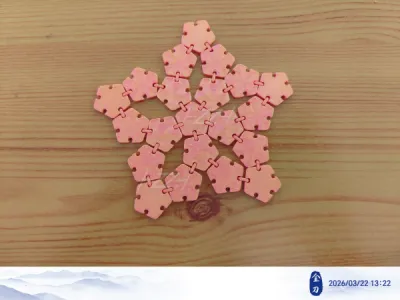

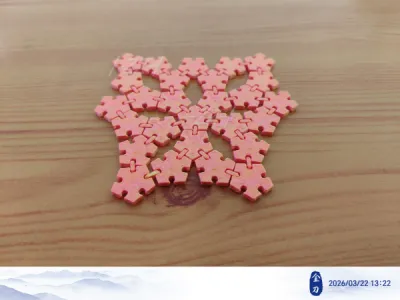

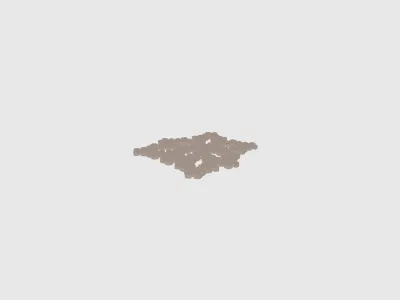

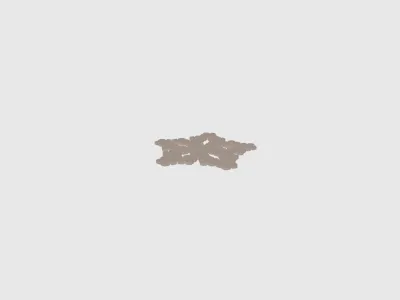

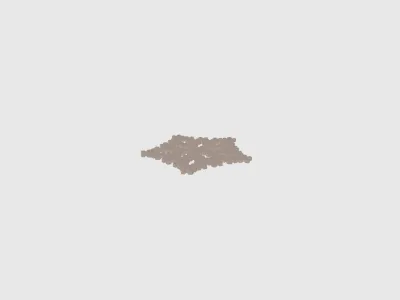

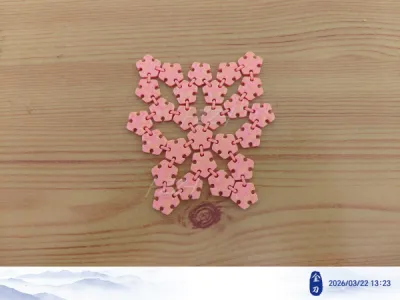

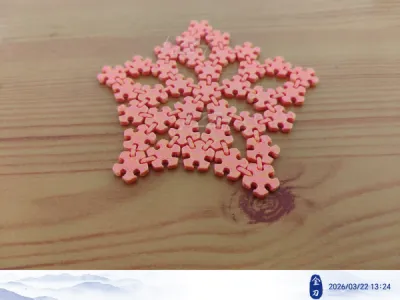

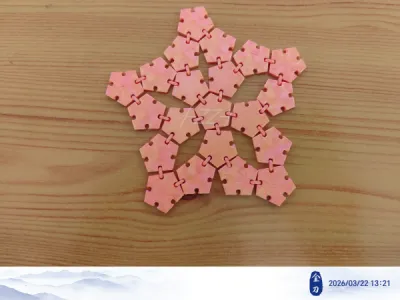

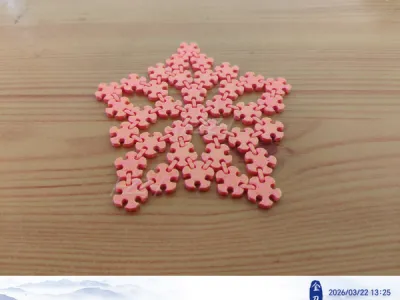

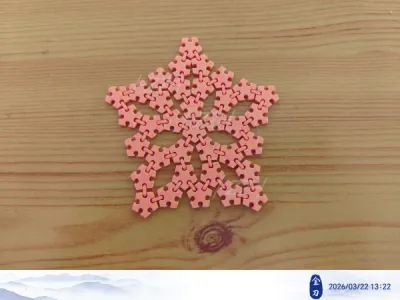

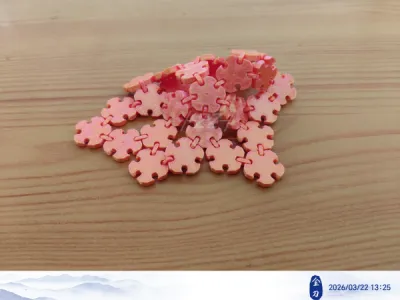

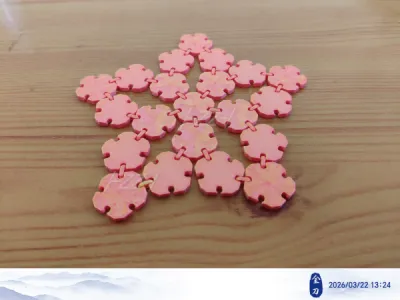

The simple schematic diagram of the assembly of each version of the current combination and the physical diagram after assembly (printed in one piece) are shown below.

1.5_1.0-A

2. V_1.0-B

3. V_1.0-C

4. V_1.1-A

5. V_1.1-B

6. V_1.1-C

7. V_1.2-A

8. V_1.2-B

9. V_1.2-C

Due to the small parts (connecting rods),
please keep away from children under 5 years and infants to prevent accidental swallowing! Keep away from children under 5 years of age and infants to prevent accidental swallowing!
Keep away from children under 5 years of age and infants to prevent accidental swallowing!

This version group is the first platform. Please do not move and release other platforms without permission! Please do not use commercial! Only for personal research and entertainment. Thank you for your understanding and cooperation.

Finally, I wish you a happy print, print and assemble your own chain armor!
