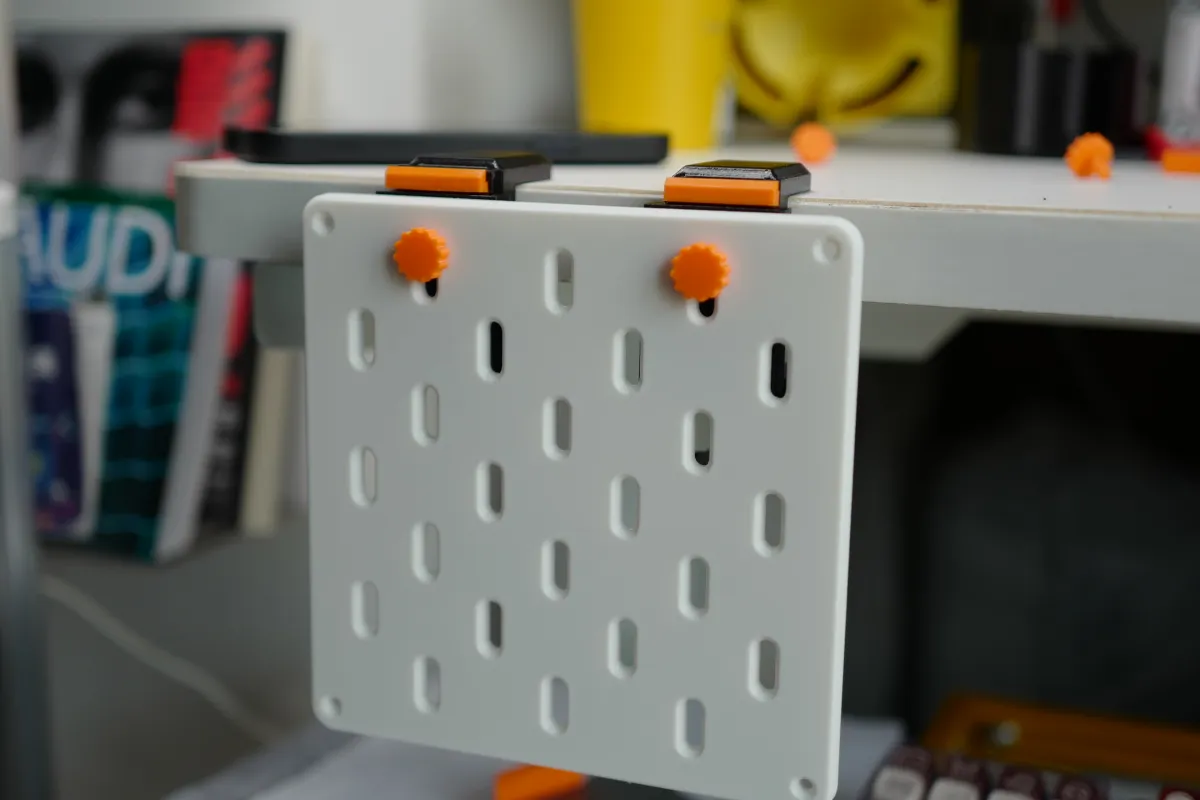

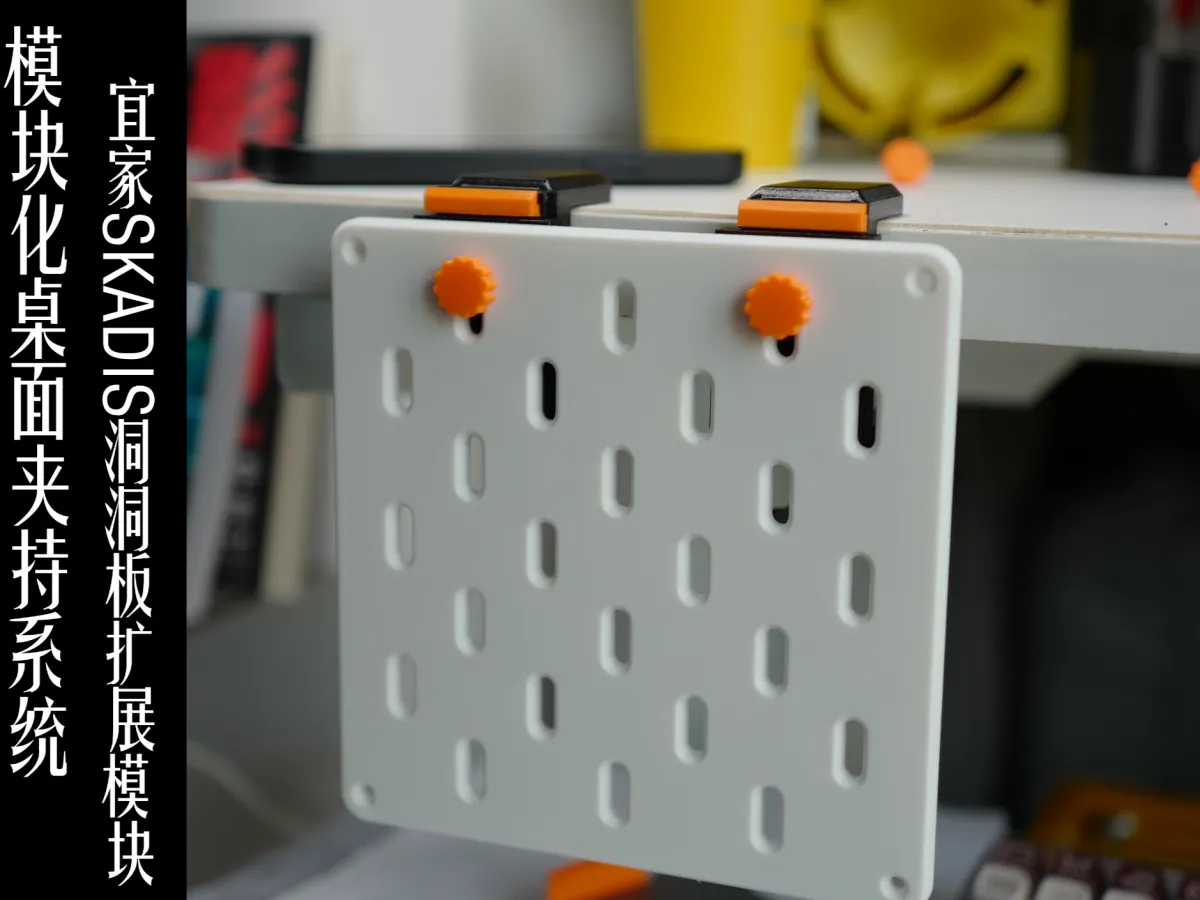

IKEA pegboard mounting bracket: This is an enhanced, quick-release pegboard mounting system that uses a pair of table clamps to secure the board. By printing two or more table clamps, you can clamp IKEA pegboards, making the system compatible with all IKEA pegboard accessories designed by creators. If your pegboard setup involves multiple connections, we recommend adding extra table clamps based on the dimensions of the extension.

For this quick-release board, I’ve left one blank section so you can customize the hole size yourself to match the screw sizes you’re using.

I’ve also designed three pegboard sizes—160 mm, 200 mm, and 240 mm—based on the hole spacing of IKEA pegboards, with three styles for each size, totaling nine variations. All corresponding pegboard connectors have already been uploaded.

You can use the printed screw components I designed, or you can purchase metal screws separately. The corner holes are 4 mm in diameter.

The combination of the quick-release board and the table-clamp limiters ensures stable positioning of the pegboard.

After inserting the quick-release board, simply add the horizontal limiter.
