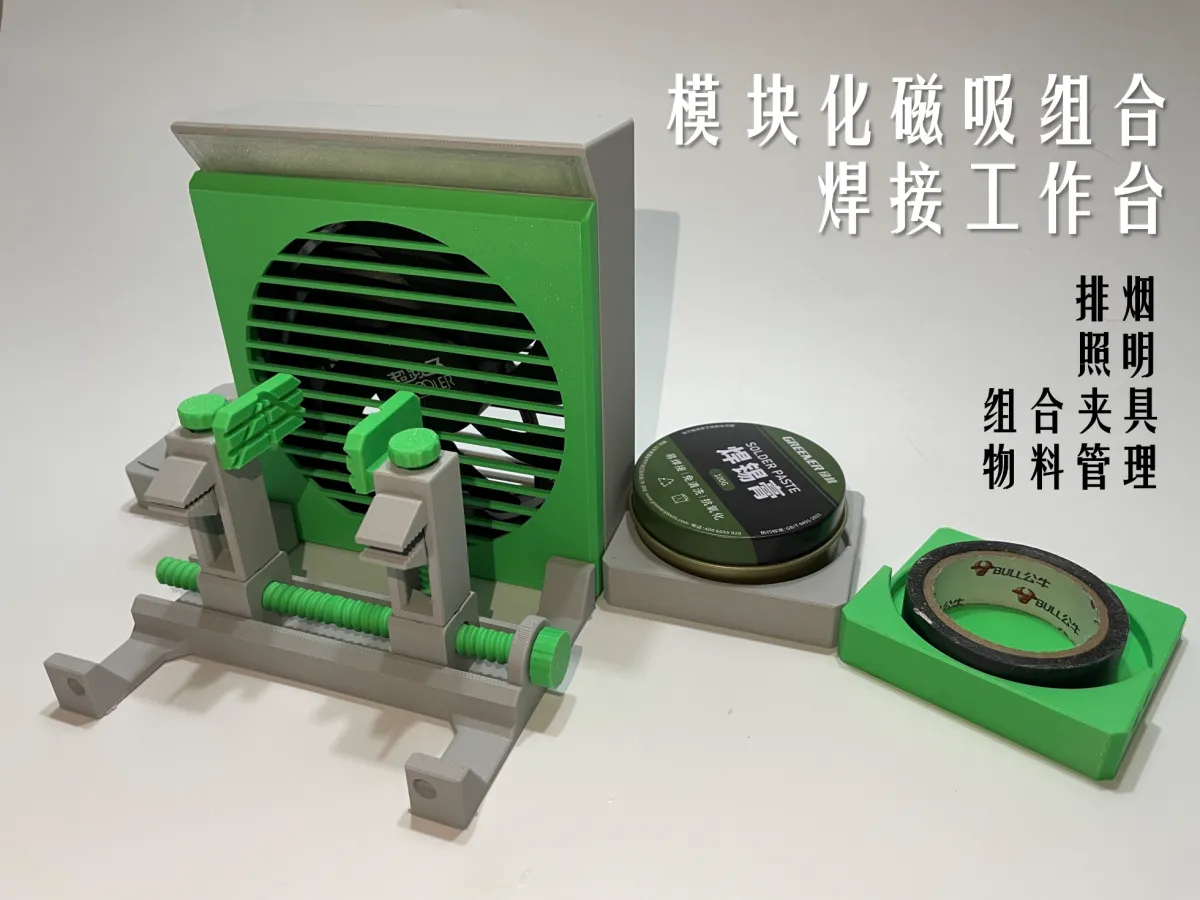

Designed for general household soldering needs, including storage for fume extractors, lighting, solder wire spools, flux, steel wool, and other items, as well as a multi-functional fixture for holding PCBs, cables, and LED strips.

Key Features

1. Customizable printing: You can choose what to print based on your specific requirements; print only what you need.

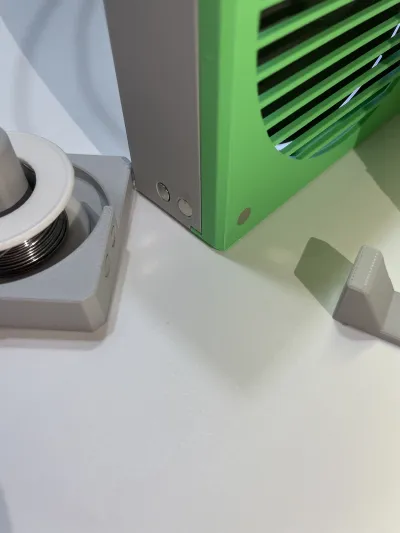

2. Built around a fume extractor fan, it features magnetic quick-connect technology with bi-directional magnetic attachment—allowing the solder wire spool to be positioned on the right side, which is left-handed-friendly.

3. The lighting is tilted downward, focusing directly on the soldering area without causing glare.

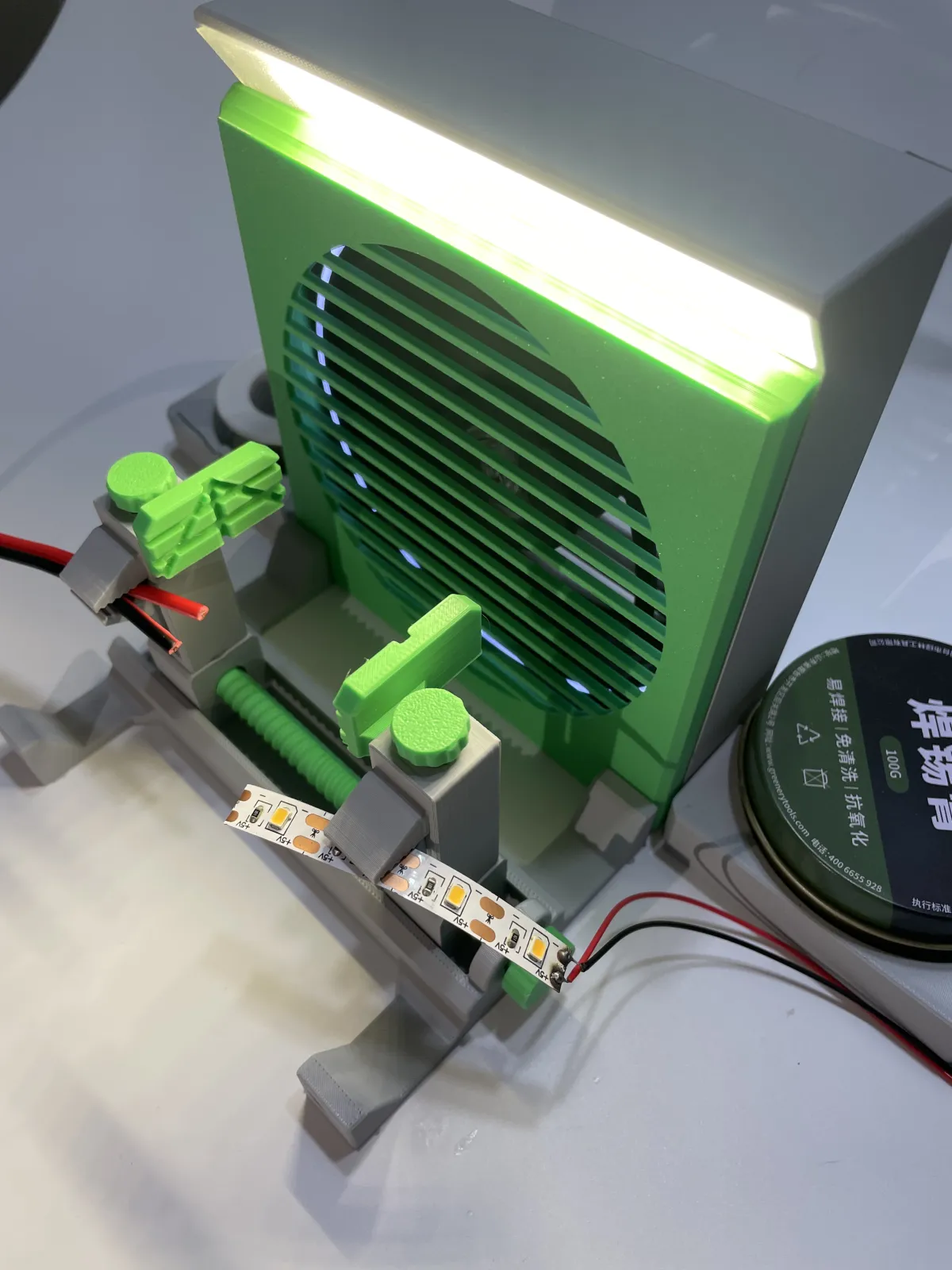

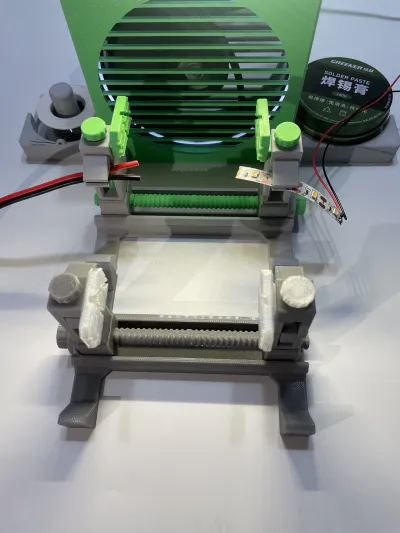

4. A multi-functional fixture that can clamp PCBs, LED strips, and cables; the PCB holder supports horizontal, vertical, and 45-degree orientations, and is compatible with 2.4 mm thick boards. Each set of clamps can hold up to a 73 mm wide PCB, and two sets can be combined for extended capacity.

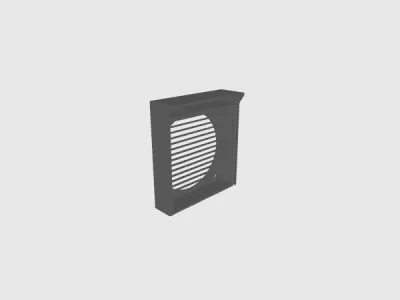

5. A push-and-pull snap-on design for quick-release filter screens, supporting filter cartridges up to 10 mm thick (dimensions: 120 × 118 × 10 mm).

Both PLA and PETG can be printed; the gray-white and green parts in the image are PLA, while the light gray and transparent parts are PETG.

Non-printed component list:

1. DC5521 female connector with a 11 mm diameter (power supply sold separately). I’ve uploaded the STEP file for the housing; if you need to modify the power connector, feel free to do so yourself.

2. 12025 fan—screw holes have been pre-drilled.

3. LED strip approximately 10 mm wide; due to variations in the number of LEDs and cut points, the total length should not exceed 11.5 mm.

Please ensure that the power supply, fan, and LED lights all operate at the same voltage.

4. Magnets, 6 mm diameter and 2 mm thick—quantity as needed.

5. Filter cartridge—quantity as needed.
