Design Philosophy

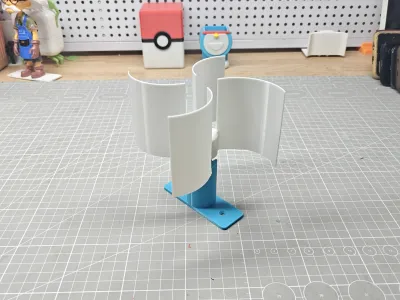

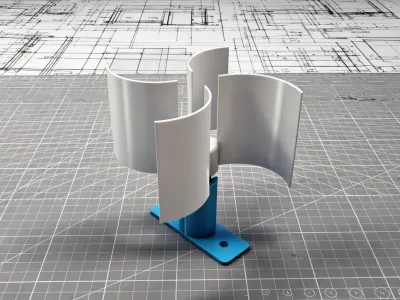

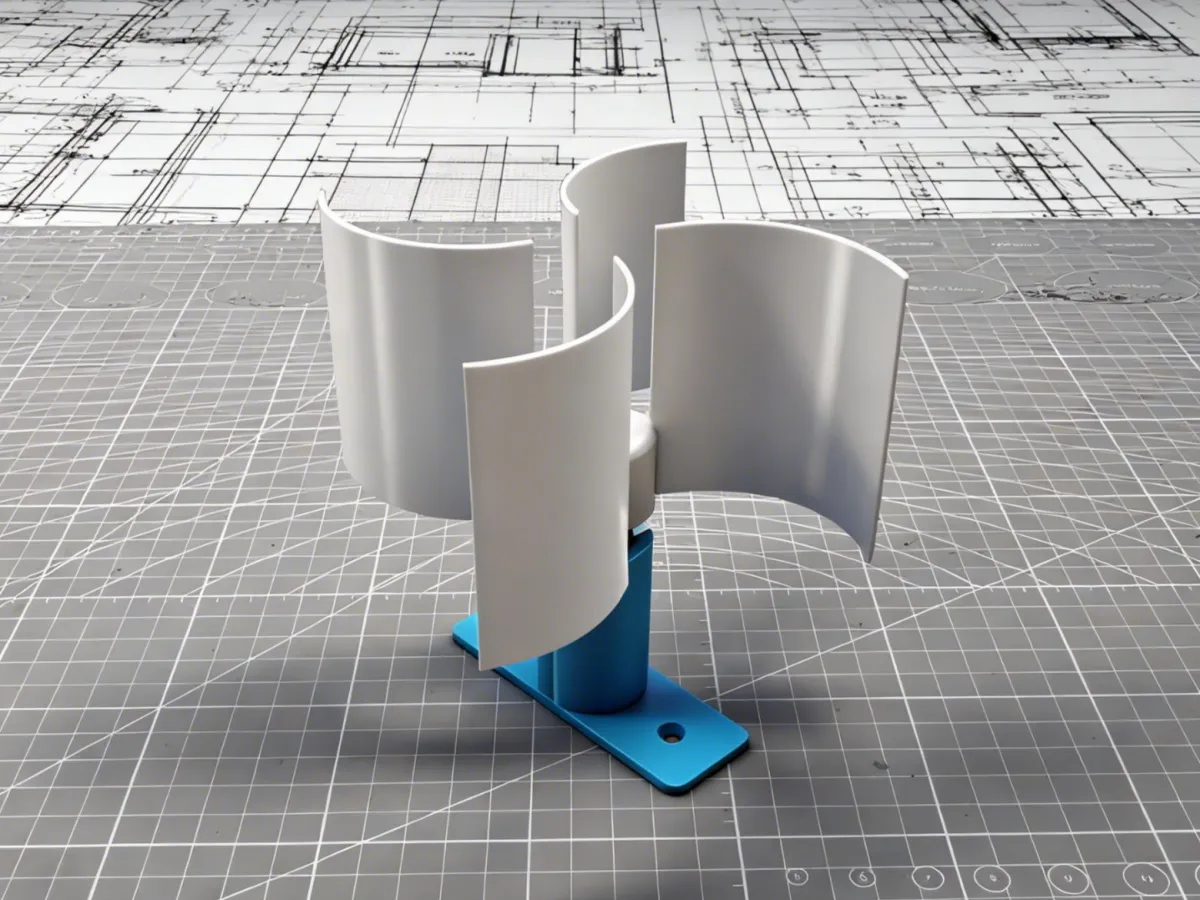

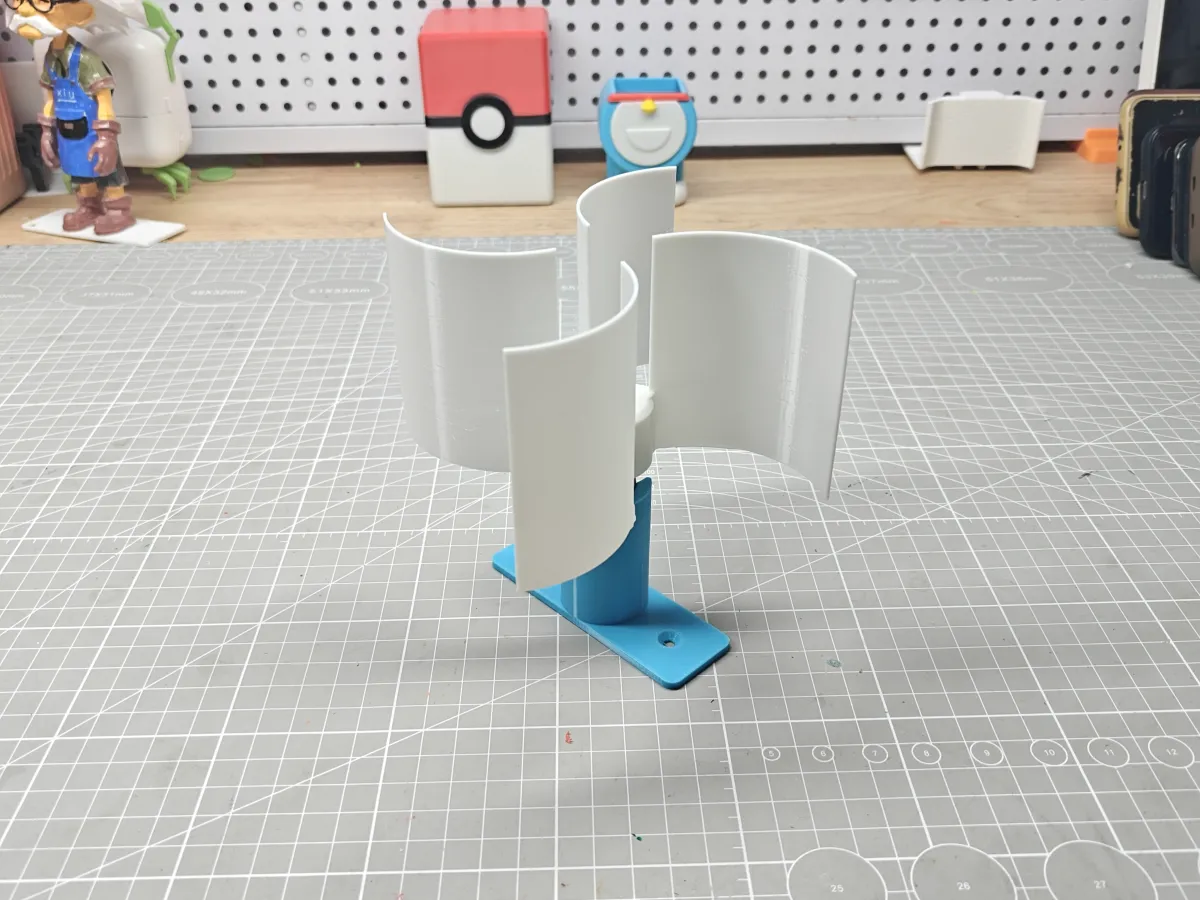

This omnidirectional wind turbine model features a sleek, modern design and employs a four‑bladed rotor configuration to efficiently capture wind energy. The base is equipped with a 131‑mm motor mounting hole, ensuring easy installation and secure fixation of the motor while enhancing the model’s practicality.

Applications

Primarily intended for educational and experimental purposes, this model serves as an engaging science exhibit to support classroom instruction. It also makes an ideal DIY project for home assembly, display, and exploration of the fundamental principles behind energy generation and utilization.

Printing Recommendations

We recommend using robust, durable PLA or ABS filaments to maximize the model’s structural integrity and longevity. For the blade components, we suggest employing a higher infill density to ensure optimal stability and performance.

Assembly Instructions

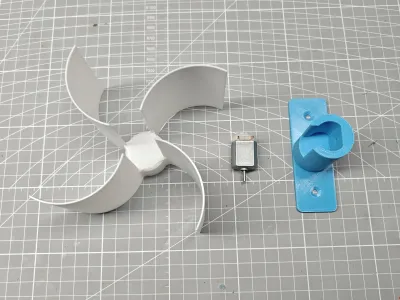

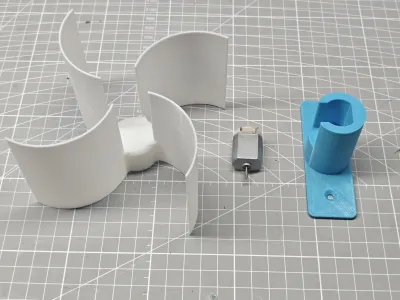

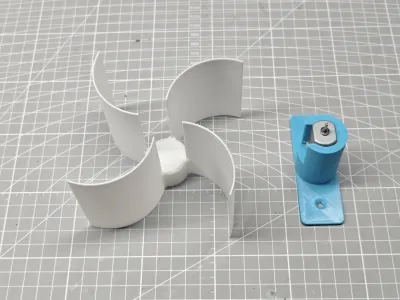

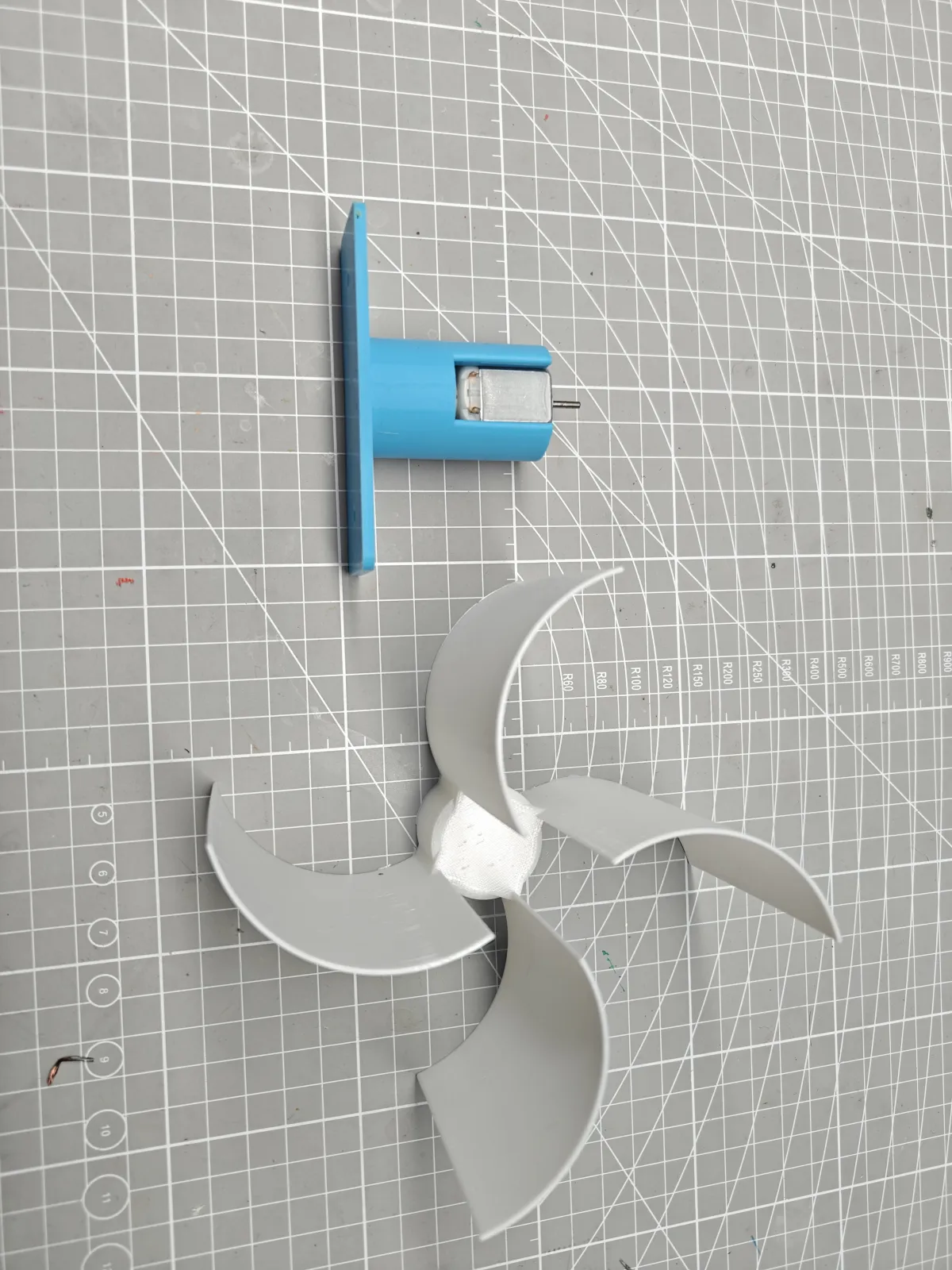

Begin by adhering the blade assemblies to the central spindle, then carefully insert the complete assembly into the base. When connecting the motor, ensure that the motor mount aligns precisely with the corresponding holes in the base—the back features screw holes that allow you to securely fasten the motor in place by tightening the screws.
