Introduction to the Helicopter Receiver Antenna Bracket for Model Aircraft

This red 3D‑printed bracket is a specialized antenna mounting accessory designed specifically for helicopter receiver units in model aircraft. Its primary function is to optimize remote control signal reception while safeguarding the delicate antenna.

✨ Core Features

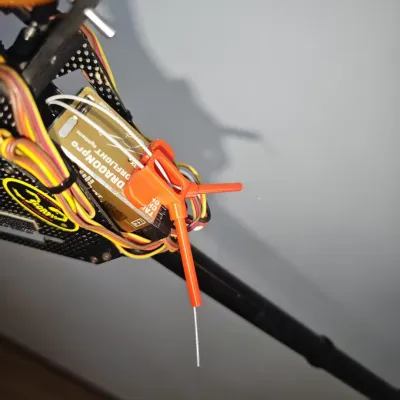

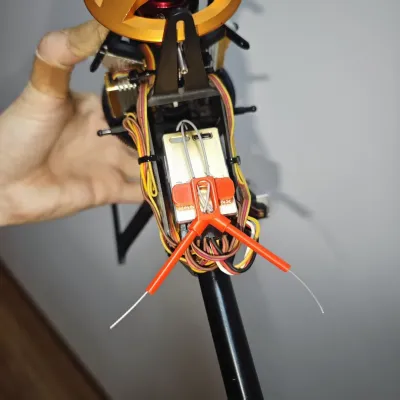

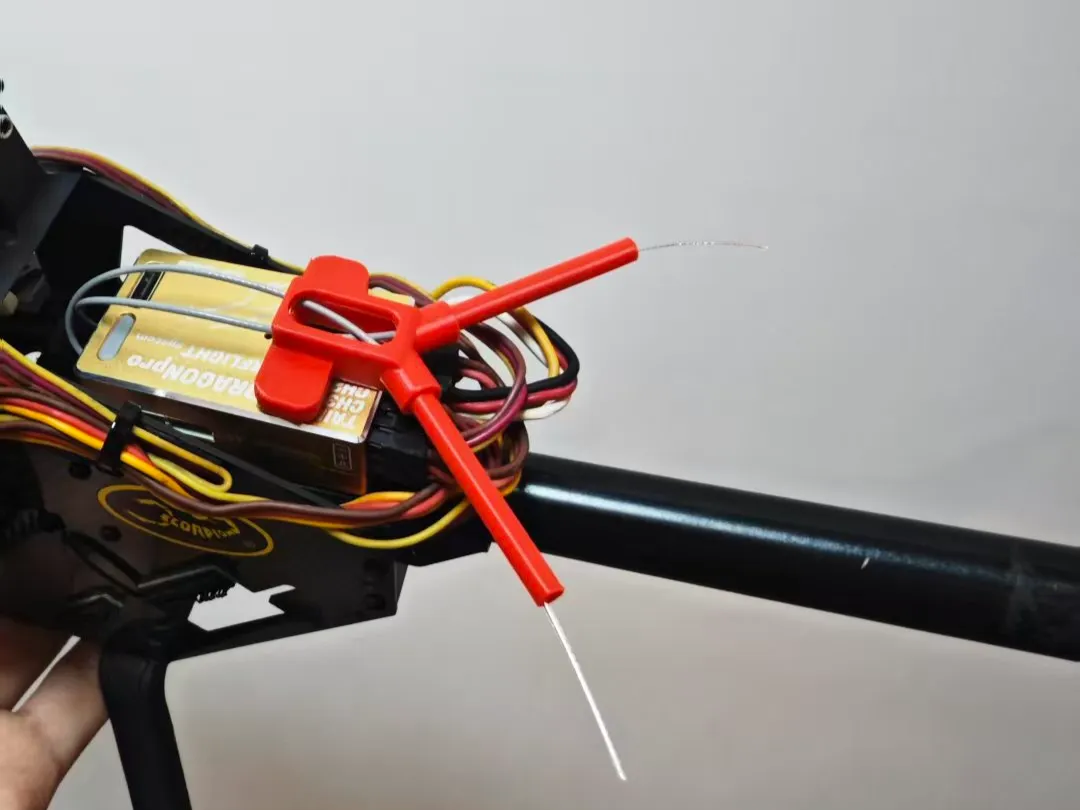

1. Signal Optimization: By employing two independent support struts, the bracket securely mounts the receiver’s two antennas at a perpendicular angle to one another. This ensures that, regardless of changes in the aircraft’s attitude during flight, the antennas maintain their optimal signal reception orientation—significantly enhancing both range and anti‑interference performance.

2. Antenna Protection: The bracket neatly separates the thin antenna leads from the cluttered internal wiring harness, preventing them from being pinched, pulled, or broken during flight, installation, or maintenance.

3. Secure Mounting & Positioning: With dedicated slots at the base or cable tie holes, the bracket can be firmly attached to the receiver unit or airframe arm, ensuring the antenna remains stable and does not shift due to vibration or airflow.

4. Cable Management: The bracket’s integrated channels neatly route the antenna leads, resulting in a cleaner internal layout and reducing the risk of cable tangling.

🎨 Design & Materials

• Custom 3D Printing: The bracket is precisely modeled based on the mounting locations of most receiver models, ensuring a perfect fit.

• Lightweight Construction: Made from materials such as PLA or PETG with thin wall thicknesses, the bracket boasts an extremely low weight, minimizing its impact on the helicopter’s center of gravity and overall flight performance.

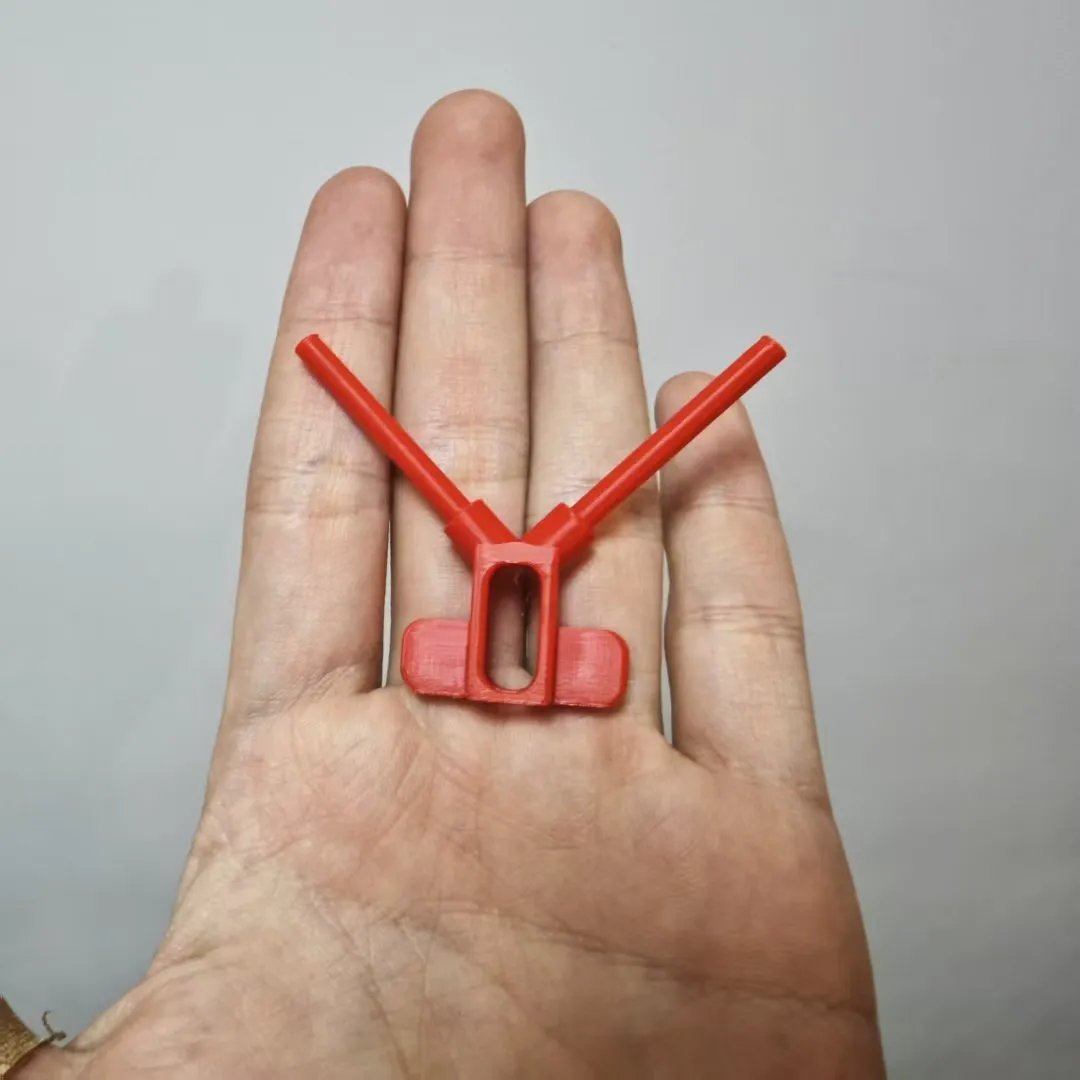

• Optimized Structure: The Y‑shaped bifurcation design ensures that the two antennas are positioned at a 90° angle, while the robust base provides a reliable mounting platform.

📦 Application Scenarios

• Flight Operations: In complex flight environments, this bracket guarantees stable remote control signals and reduces the risk of loss of control.

• Equipment Maintenance: During receiver debugging or replacement, it protects the antenna from damage.

• Daily Storage: Prevents the antenna from bending or kinking when stored.
