N20 Motor Gimbal
Print Profile(4)
- 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer - 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer - 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer - 0.2 mm layer height, 2‑wall walls, 15% infill density
1-disc
PLA
Designer
7
0
Released 2026-02-13

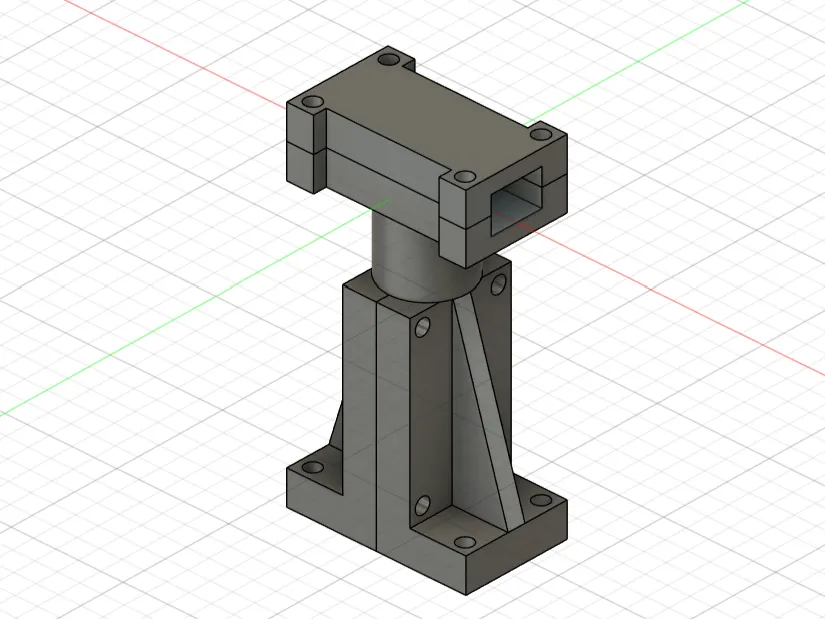

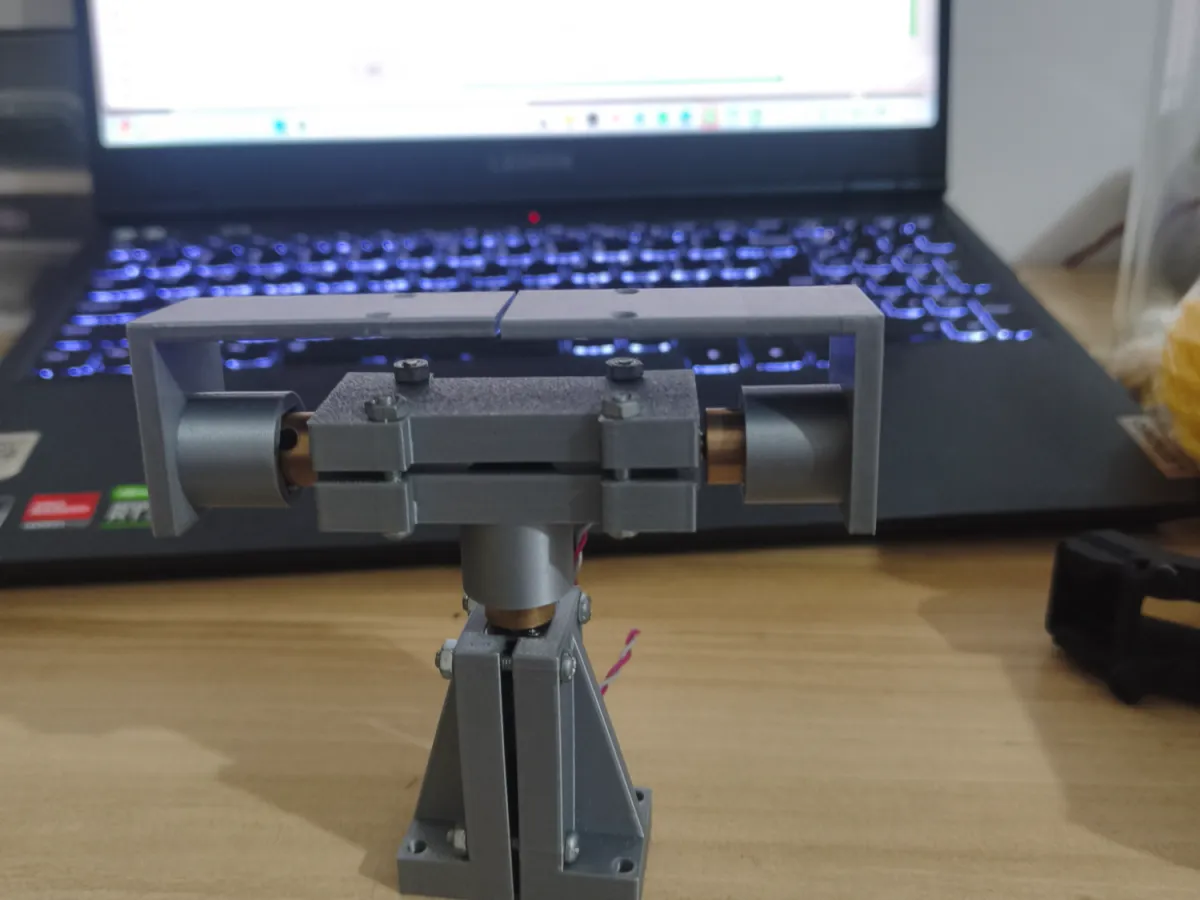

This is an N20 gear motor gimbal, ideally suited for applications where high control precision isn’t critical but substantial torque is required. It can be used in basic robotic gimbals and is compatible with controllers such as the ESP32 and STM32.
Bill of materials
- NameQuantityNotes
- 1螺丝螺母103*20mm螺丝螺母8套，4mm螺丝2套，六角黄铜联轴器2套。
Originality of the Model
The author declares that this work is their personally original model
This model is licensed under the following terms:
Credit must be given to the creator
Models(4)
- 云台底座.3mfDesigner
38.87 KB
2026-02-12
- 云台盖板.3mfDesigner
32.60 KB
2026-02-12
- 云台颈部.3mfDesigner
39.07 KB
2026-02-12
- 云台支架.3mfDesigner
40.56 KB
2026-02-12
