Gongyu Mecha Presents

China’s Weaponry Series III – Siege Engines – Catapult (Revised)

Gongyu Mecha’s Works:

Bagua Mecha (based on the iconic mountains and rivers of China’s provinces, including Chaohu Lake, Mount Li, Badaling, Namtso Lake, and more);

Mythical Mecha (modeled after legendary figures such as Sun Wukong, Yang Jian, and the Ox Demon King);

The Classic of Mountains and Seas Series (featuring biological forms, mechanical designs, fighter aircraft, aerial vehicles, warships, armored vehicles, main battle tanks, multi‑functional engineering armored vehicles, rotary engineering armored vehicles, engineering armored trucks, military armored trains, and much more.);

China’s Weaponry Series (siege engines, defensive fortifications, and field artillery);

Mechanical Insect Mecha Series (mechanical and insectoid forms of the Hercules beetle, the Japanese rhinoceros beetle, the long‑horned beetle, and more…);

Mecha The Classic of Mountains and Seas Series (Rotating Turtle Mecha…)

Mecha Dinosaur Series (Mechanized Stegosaurus, Mechanized Triceratops, Mechanized Spinosaurus, Mechanized Tyrannosaurus Rex, Mechanized Titanosaurus, Mechanized Mosasaurus…)

Retractable Sword Series (Tao Tie Han Sword, Tao Tie Short Sword, Coiled Pattern Retractable Staff, Bagua Retractable Staff…)

Festival Transformation Robots(“Zongzi”-style camouflage surveillance transformation robots, “Mooncake”-style fire support transformation robots, “Pumpkin”-style heavy‑duty guard transformation robots…)

This model marks the first revised iteration in China’s Weaponry Series III – Siege Engines: the Catapult (Revised).

China’s Weaponry Series III – Siege Engines, the first model: the Catapult

China’s Weaponry Series IV – Siege Engines, the second model: the Assault Ram

China’s Weaponry Series V – Siege Engines, the third model: the Cloud Ladder

China’s Weaponry Series VI – Siege Engines, the fourth model: the Lü Gong Carriage

China’s Weaponry Series VII – Siege Engines, the fifth model: the Canopy Cart

China’s Weaponry Series II – Field Artillery– the first model: the Sword Array War Chariot

China’s Weaponry Series I – Defensive Fortifications– the first model: the Gate Blockade Sword Cart

Simple to print, easy to assemble, lightweight yet sturdy, crafted with precision, designed for quick assembly—no supports needed during printing, no glue required for assembly! Plus, it’s highly durable, resistant to breakage, and boasts a smooth finish that makes it ideal for both indoor display and outdoor use.

Note: 1. If the parts are too tight to fit by hand, simply print the included tool hammer and gently tap the connectors into place.

        2. To prevent printing failures, we recommend applying a light coat of adhesive or using a release spray on the print bed—most issues stem from an overly smooth print surface.

Print without supports (though you can add a skirt to the base plate if it doesn’t adhere well), and assemble without glue or hardware—just apply firm pressure or give it a gentle tap with a small mallet if the pieces feel a bit snug. This is a truly convenient Chinese-style assembly model!

Catapult:

The catapult is a large-scale, human‑powered long‑range weapon that uses the principle of leverage to launch stone projectiles. Its emergence represented both technological advancement and the evolving needs of warfare. In Chinese chess, the black side’s “cannon” is written as “砲,” which originally referred to the catapult—and the character “fire” in its radical often denotes the ancient practice of “pao luo” (a form of torture involving burning). While the catapult was already in use during the Spring and Autumn period, it became a critical siege weapon in the Sui and Tang dynasties onward. By the Song Dynasty, however, it had seen even greater development, expanding beyond siege operations to become a vital tool for both offensive and defensive engagements in open-field battles. In ancient texts, terms like “throwing stones” and “flying stones” specifically refer to the catapult. Across the ancient world, the catapult was also a primary offensive weapon—used extensively by the Persians and the Greeks alike.

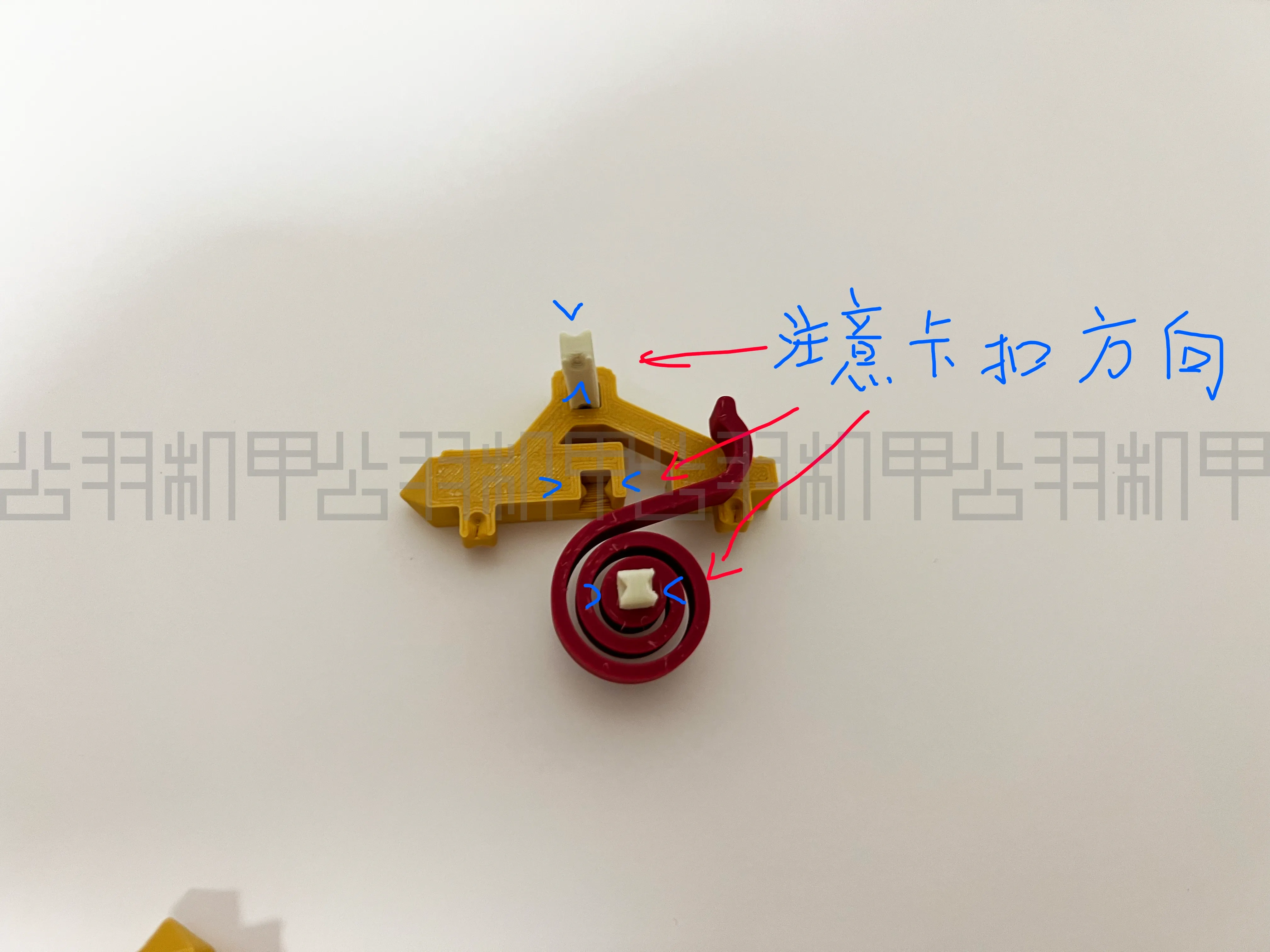

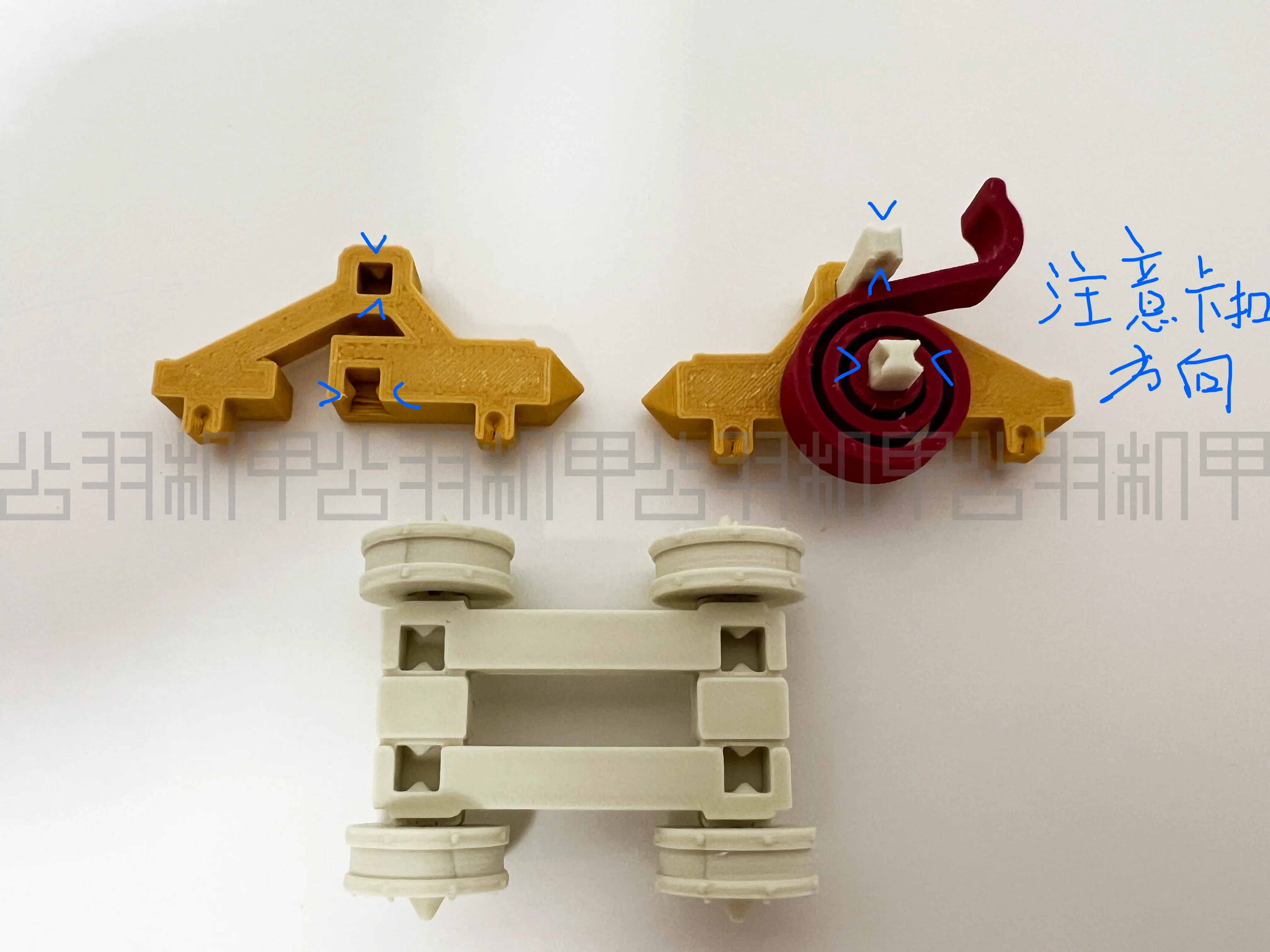

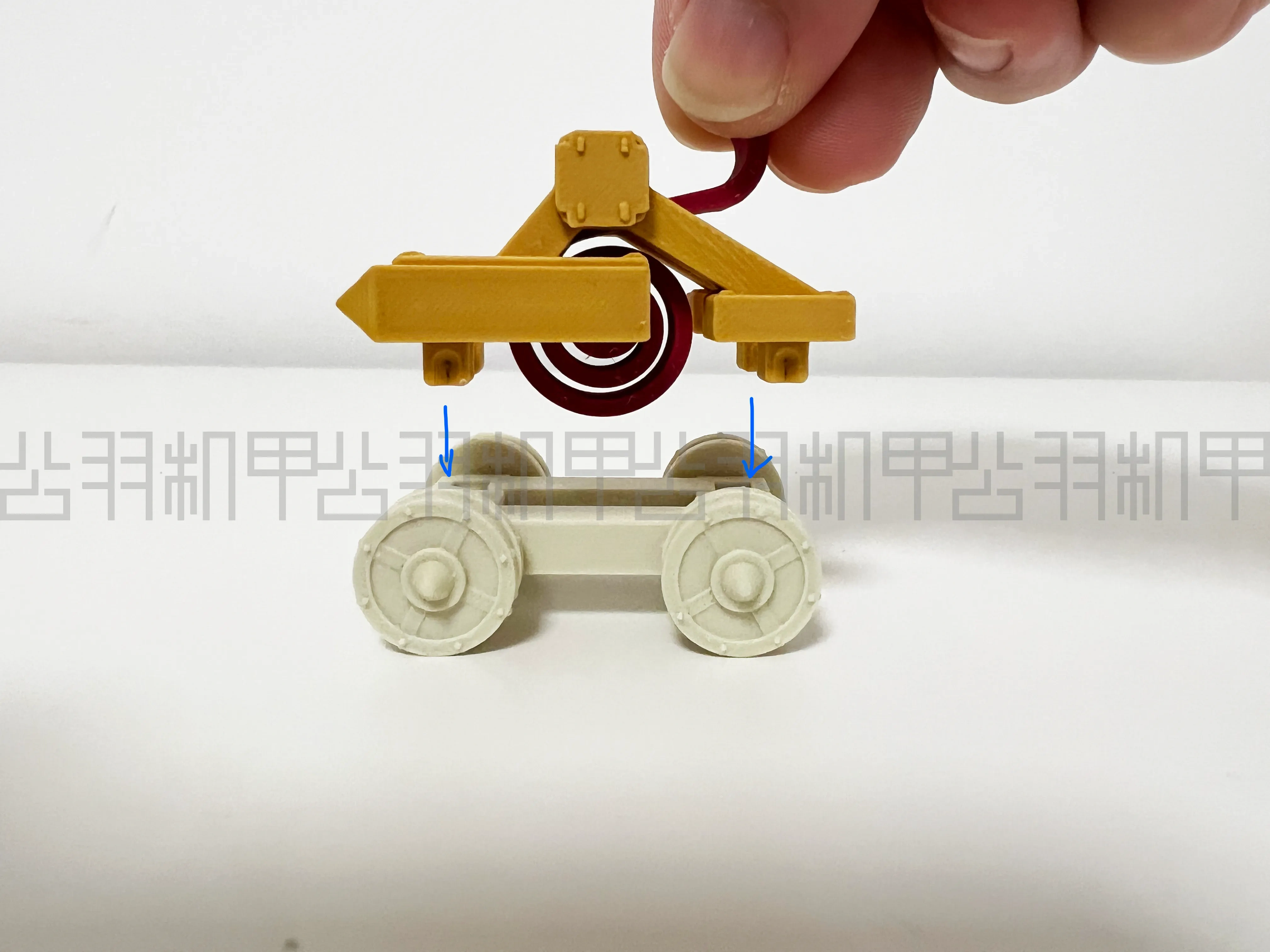

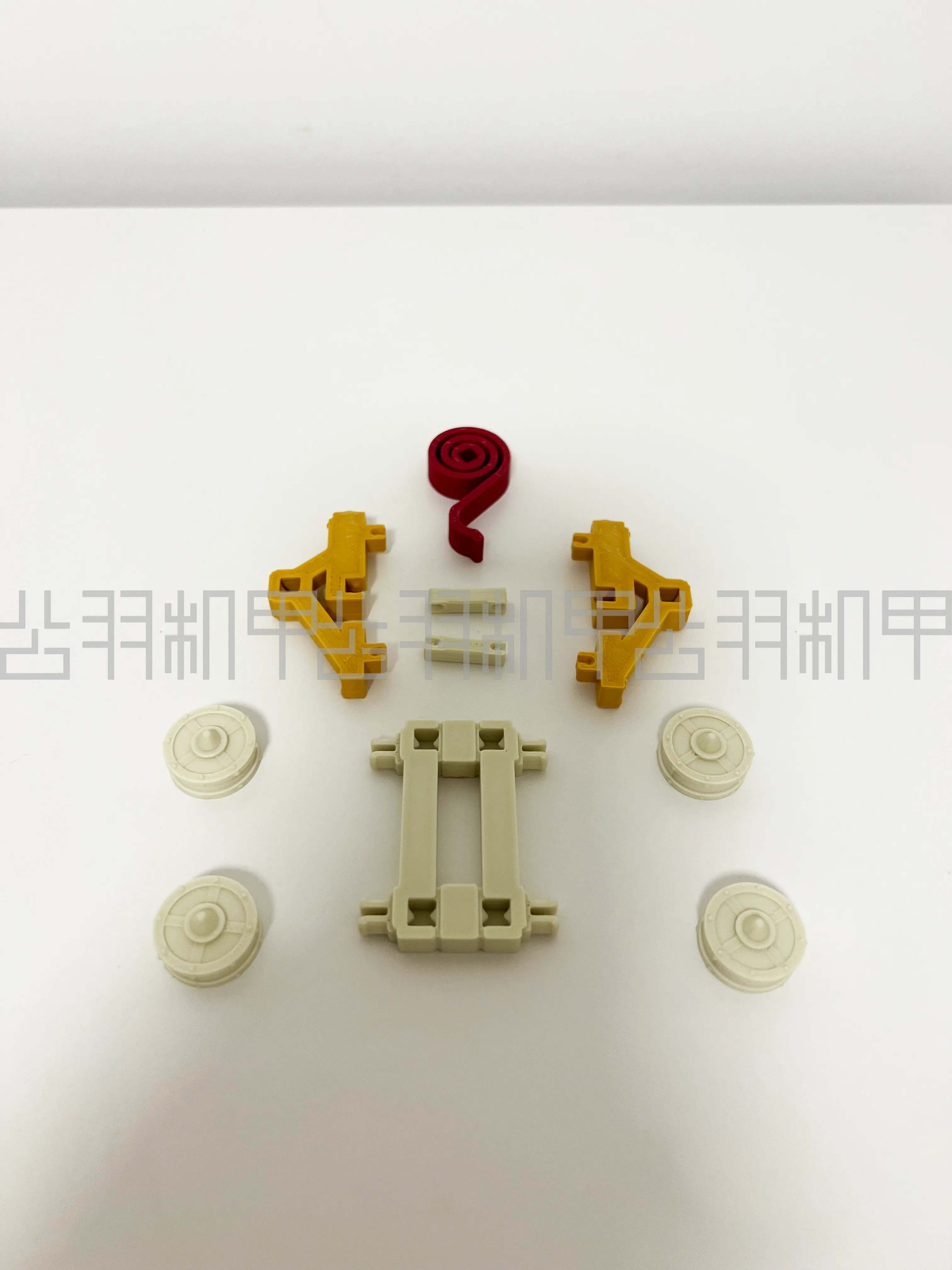

Assembly Guide:
