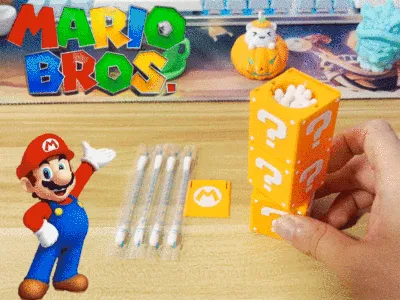

Rotating Storage Box for Small Items, such as:

• Cotton Swabs
• Toothbrush Heads
• Medication Pills
• Hair Clips
• Earpieces

• Sanitary Tampons

Available in 3 Sizes

1. Internal Dimensions: 22 x 22 x 75 mm

2. Internal Dimensions: 22 x 22 x 85 mm

3. Internal Dimensions: 22 x 22 x 100 mm

   Printing Notes:

   The internal circular storage compartments require support during printing. After removing the supports, inspect the two protruding cylinders shown in the image below to ensure they remain intact. If any deformation is detected, carefully use a small knife to smooth out the affected areas—failure to address this could lead to jamming or uneven rotation when the box is in use.



Assembly Instructions

1. Align and snap the top and middle layers together—these are designed with interlocking tabs; simply apply firm pressure to secure them in place.

2. Fit the top and middle layers onto the base layer.

3. Rotate the storage box until the notches at the top align perfectly.

4. Align the top notches and insert the circular storage compartment.
