Filament sensor mount for Centauri carbon
Print Profile(1)
  • 0.2mm layer, 4 walls, 15% infill

    1-disc

    PETG

    Designer

21

65

1.1k

86

Released 2025-08-15
Details
Files(5)
Makes & Comments (0)

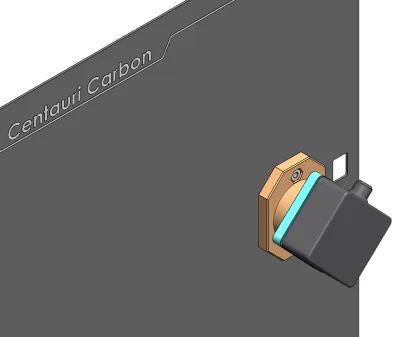

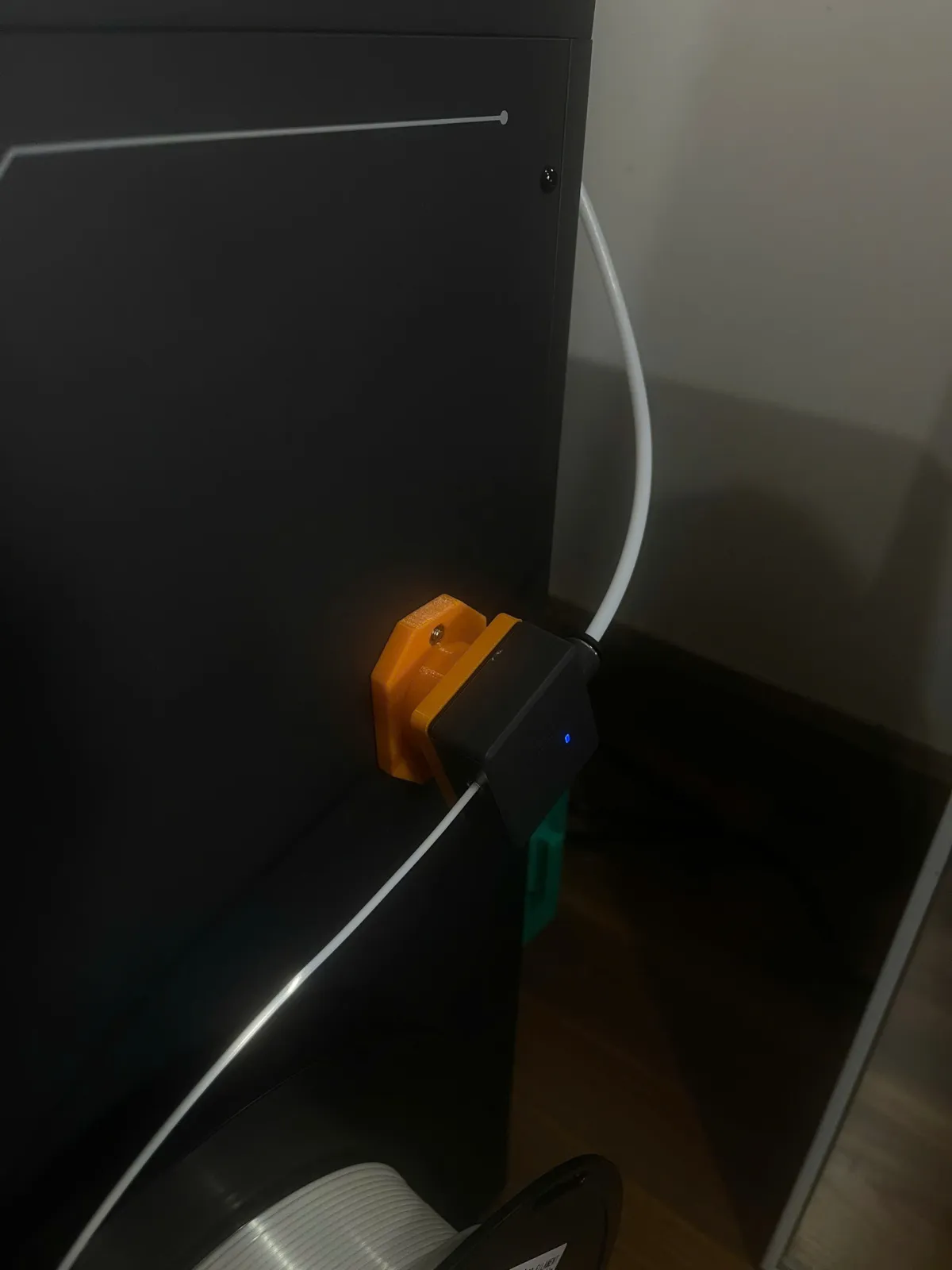

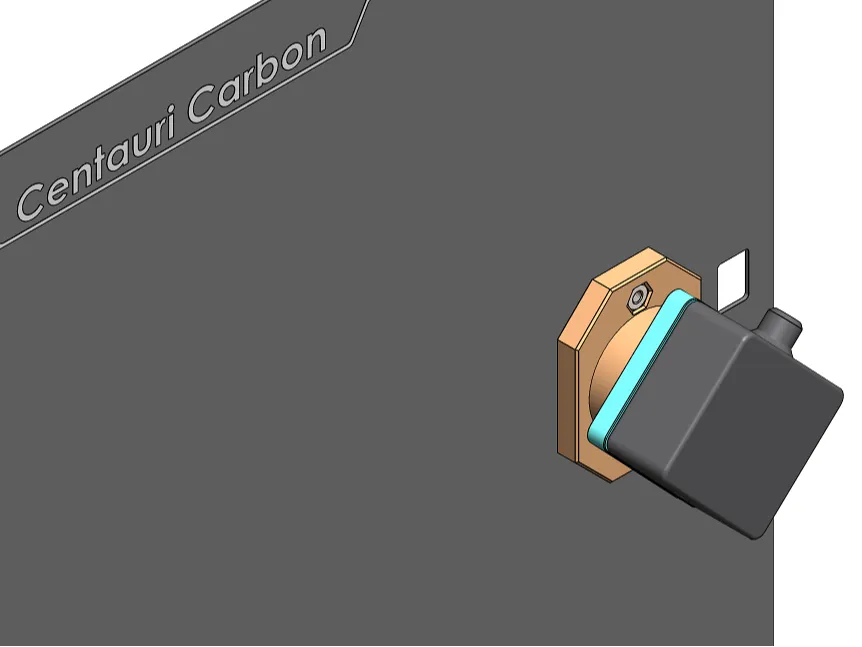

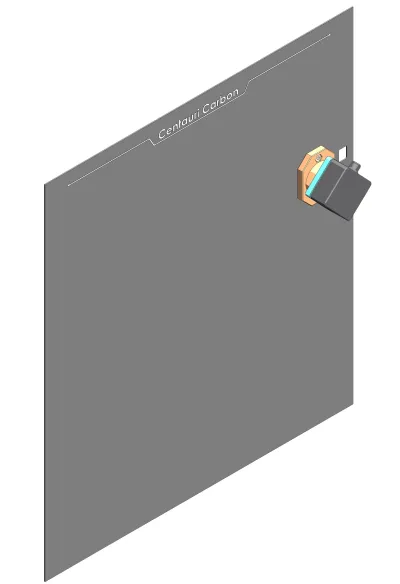

Filament Sensor Mount is a component that helps to change the angle of the sensor from the flexible plastic.

Suitable for Pla, Petg, ABS materials. I think Petg will be the best.

One-directional mechanism has a better feeling but the bi-directional is more useful.

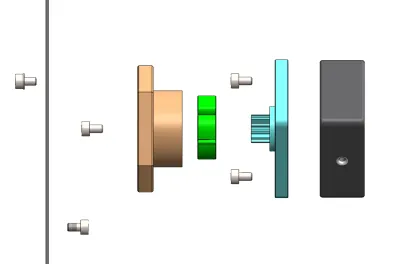

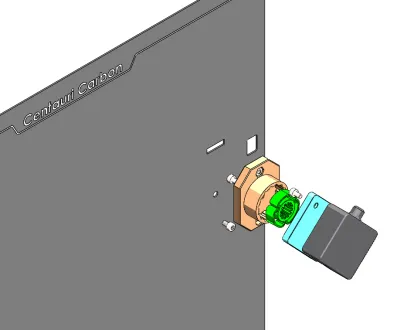

Hardware:

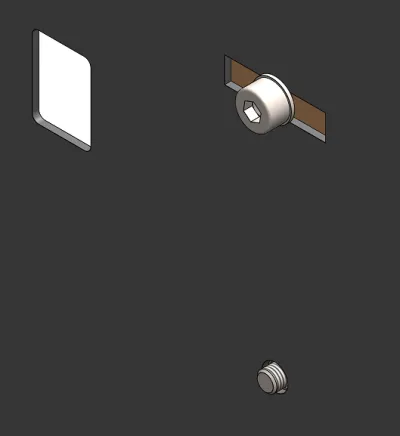

  • Elegoo CC side panel mount:
    • 2 - M3*5 Screws
    • 1 - M3 Nuts
  • Filament sensor mount
    • 2 - Original Screws
  • Center shaft
    • 1 - M3*8 Screw

Originality of the Model

The author declares that this work is their personally remixed model

Original creator:
TiagoR79
Adaptation source:https://makerworld.com/en/models/1381282-centauri-carbon-filament-sensor-adjustable-offset?from=search

This model is licensed under the following terms:

Credit must be given to the creator

Models(5)

  • model file image
    03-Filament sensor mount - 1.STLDesigner

    9.92 MB

    2025-08-11

  • model file image
    03-Filament sensor mount - 2.STLDesigner

    1.90 MB

    2025-08-11

  • model file image
    03-Filament sensor mount - 3.STLDesigner

    1.50 MB

    2025-08-11

  • model file image
    03-Filament sensor mount - 4.STLDesigner

    2.00 MB

    2025-08-11

  • model file image
    0.2-PETG-CF.3mf

    3.80 MB

    2026-03-04
